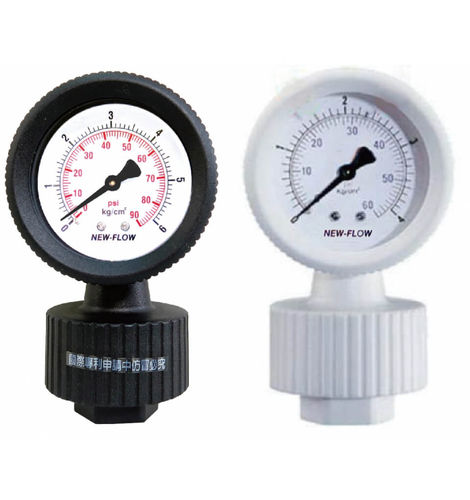

Diaphragm seal with threaded connection PG series

for pressure gaugeschemicalsafety

Particularly used for diaphragm pressure gauges which specialized used in the outfit of electric circuit board, pump fluid filter as well as chemical industry, with its PP or PVDF all in one case covered around in order to its unbreakable function and excellent efficacy of anticorrosive. Application • Used for Chemical Industries Pressure Gauge • High Viscosity Liquid System • Water Treatment System • Fluid Filter System Technical Data Dial Size: ø60mm Pressure Range: PP Case: -76cmHg~0 to 0~20 kg/cm2; PVDF Case: 0~10 kg/cm2 Unit: kg/cm2, Bar, Psi...; Single scale or Dual scale available Case Material: PP Anti-Impact, all in one; PVDF is on request Lens Material: Safety Glass Diaphragm Membrane Material: PP Case: Viton; PVDF Case: PTFE Accuracy: ±2.0% Full Scale Connection Size: 1/2" BSPT, BSP, NPT female; and 1/4"BSPT, NPT female thread available Working Temperature: -20℃~+60℃ Install Twist: PP Case: max. 25 kg/cm2; PVDF Case: 0.5~10 kg/cm2
