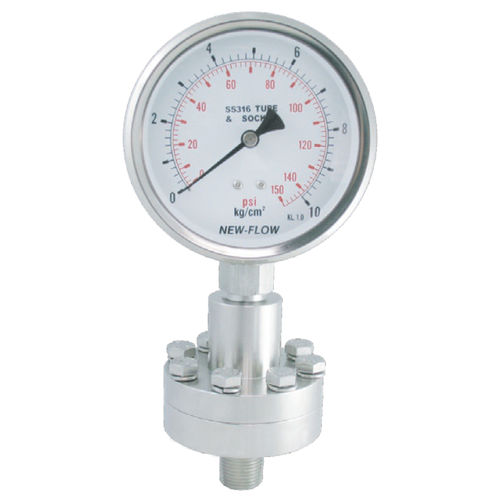

Diaphragm seal with threaded connection DT111
for pressure gaugesprocess

diaphragm seal with threaded connection
diaphragm seal with threaded connection
diaphragm seal with threaded connection
diaphragm seal with threaded connection
Add to favorites
Compare this product


Characteristics

Installation system
with threaded connection
Other characteristics
for pressure gauges
Field
process
Pressure

Min.: 0 bar (0 psi)

Max.: 60 bar (870.23 psi)

Description

DT-111 diaphragm seal is designed to be used in highly viscous process media such as pulp, paper, waste water treatment and plastics and Chemical process industries. It is easy to assemble with pressure gauges, pressure switches, and pressure instruments. Technical Data Instrument connection: female thread Va* to V2* BSP or NPT Process connection: Va* to V2" Thread BSP or NPT Température limited: -40~+150°C , cooling element or capillary line up to 350°C Pressure range limited: Maximum up to 60 kg/cm2 Minimum 0-10 kg/cm2r option 0-250 kg/cm2 Material: upper & lower housing-SS316 (standard), others on request Membrane: SS316L (standard); Options- Hastelloy C276, tantalum and others on request.
