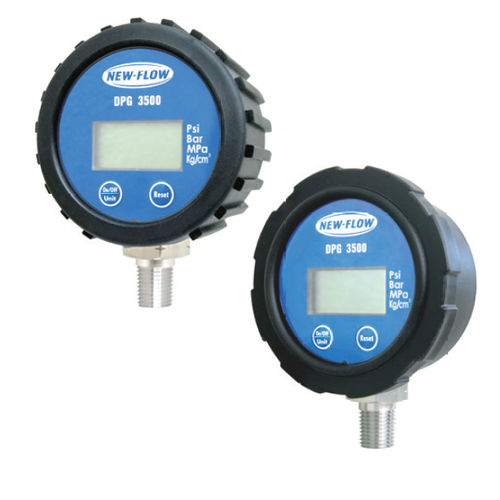

Digital pressure gauge DPG3500 series

threadedstainless steelBourdon tube

DPG3500-W-Weather proof type DPG3500-G-General type The New-Flow DPG3500 Digital Pressure Gauge is designed to handle any applications by measuring air, liquid, and oil pressure. DPG3500 is using the most update temperature compensation technology, and the superior pressure meter equipped with variety of function such as unit selection, zero adjustment, and guarantee to long battery life, so it can be used for a variety of industrial and commercial applications without replacing battery for 3 years typical. Technical Data Power Supply: Lithium Battery CR123A (3.0V, 1400mAh) Sampling Rate: 1.2 sec. max. Battery Life: Without Back-Lighted: 3 Years for continuous operation; Using Back-Lighted for 5secs (5 times per day): 1.5 Years for continuous operation Pressure Range: 0~5000 PSI Pressure Unit: Psi, Bar, Kg/cm2, Mpa Burst Pressure: 2 Times of F.S Resolution: 1/1500 maximum Working Temperature: -10℃~+60℃ Working Humidity: 35~85% RH Accuracy:±0.5%F.S. (@25±3℃) Port: Male thread 1/4"NPT, 1/4"PT (R1/4), 1/4"BSP, standard; 1/8" NPT, 1/8"PT (R1/8), 1/8”BSP available Wetted Parts Material: SS316L Measure Media: Gas and Liquid (compatible with wetted parts material SS316L) Weather Proof: only for DPG3500-W Weight: approx. 0.3 kg
