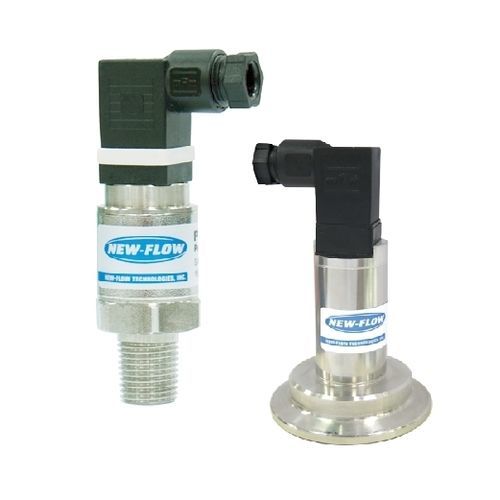

Relative pressure transmitter PT3100membrane4-20 mA2-wire
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane
- Output
- 4-20 mA, 2-wire
- Mounting
- threaded, flange
- Process connection
- G 1/4, NPT 1/4
- Material
- stainless steel
- Protection level
- EMC, IP65
- Applications
- process
- Other characteristics
- two-wire
- Pressure range
Max.: 350 bar
(5,076.32 psi)Min.: -1 bar
(-14.5 psi)- Precision
0.5 %
- Process temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description
PT3100 is suitable for the media of fluid and gas. Several measure ranges are available for a variety of cutomotive, industrial and commercial applications.
Technical Data
Accuracy: ±0.5% of full scale
(±1.5% of full scale for -1~0 bar to 0~2.5 bar only)
Range: Please refer to the Measure Range Table
Power Supply: 11 to 30 volts DC
Output Signal: 4~20mA, 2-wires
EMC Compatibility: 80MHz - 1GHz
Conduit Connection: M12 & Mini DIN43650 Connectors, plastic
Material of Wetted Parts: SS316 or SS304L available
Process Connection: Thread 1/4"NPT, 1/4"PT and G1/4" Male; Clamp 1" (IS02852) / 25(DIN32676) and 1-1/2" (IS02852)/ 32 (DIN32676) available
Catalogs
PT3100
1 Pages
