Differential pressure gauge DPH400
dialstainless steeldiaphragm

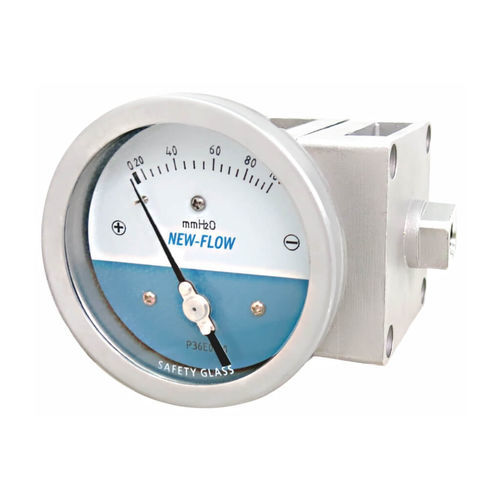

Differential pressure gauge - DPH400 - Golden Mountain Enterprise - dial / stainless steel / diaphragm
Differential pressure gauge - DPH400 - Golden Mountain Enterprise - dial / stainless steel / diaphragm
Differential pressure gauge - DPH400 - Golden Mountain Enterprise - dial / stainless steel / diaphragm - image - 2
Add to favorites
Compare this product
Go to the Golden Mountain Enterprise website for more information

Characteristics

Pressure type
differential
Display
dial
Material
stainless steel
Technology
diaphragm
Protection level
IP66
Applications
process
Pressure

30 bar
(435.11 psi)

Precision

2 %

Dial diameter

100 mm, 150 mm
(3.9 in, 5.9 in)

Process temperature

80 °C
(176 °F)

Description

Spring and diaphragm as well as magnet couple with pointer. Differential pressure indicated on dial due to △P pressure of high side and low side be made from magnet couple with pointer. Technical Data Dial Size: ø4", ø6" available Accuracy: Standard ±2.5% F.S (on rising pressure) Option:±2.0% on request Housing Material: 316 stainless Steel Pressure Element: Diaphragm-NBR; other parts all in SS316; Driving magnet (no sealed) Process Connection: 1/4"NPT female; and Large connection with adaptor available Working Pressure: 30kg/cm2 (Both of High & Low side must be pressured on line at the same time.) Working Temperature: max. 80℃
