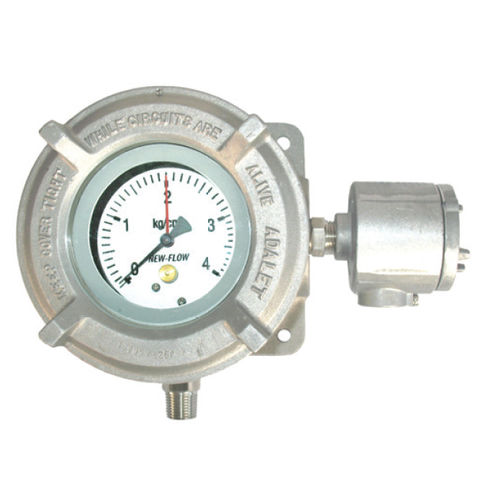

dial pressure gauge / Bourdon tube / process / stainless steel
PIS5000X

{{requestButtons}}

Characteristics

  • Display:

    dial

  • Technology:

    Bourdon tube

  • Applications:

    process

  • Other characteristics:

    stainless steel, aluminum, explosion-proof, threaded

  • Pressure:

    Max.: 400 bar (5,801.51 psi)

    Min.: 0 bar (0 psi)

Description

Explosion Proof Type
Class I, Groups B, C, D ; Class II, Groups E, F, G ; NEMA 4, 7, 9
Measuring Range: 0~(-1) kg/cm² ; 1~400 kg/cm² available
Material: Borudon tube: SS316 ; Wetted parts: SS316 ; Housing: Die cast aluminum alloy
Dial: ø6"
Process Connection: 3/8", 1/2"NPT ; option with adaptor available
Electronic Connection: 1/2"NPT ; option with adaptor available
Accuracy: Gauge indication +/-1.0% F.S.
Pressure Limited: Over range protected 130% of full scale range
Switch Form: One setting point SPDT x 1 ; Two setting points SPDT x 2
Set Point: Full scale range available
Switch Dead Band: +/-2% of full scale
(please check theRange Selection Table for SPDT x 1 & SPDT x 2 as catalogue)
Switch Data: AC Load 250VAC max. ; DC Load 28VDC max.
