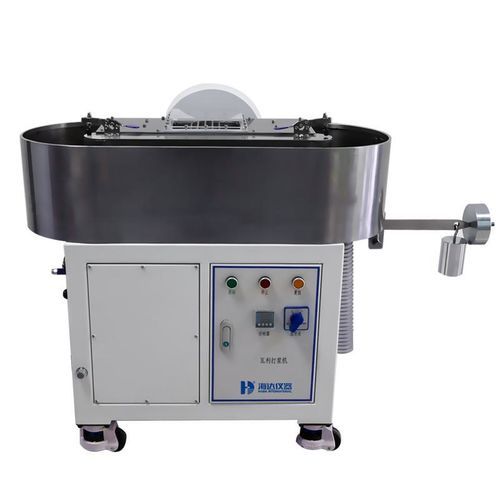

Laboratory beater 5036-HD

Product overview
The Valley beater 5036-HD is a laboratory machine for pulping and refining fiber materials. It uses a flying knife roller and a bottom knife to cut, crush, rub and refine various plant, synthetic and recycled fibers, producing controlled deformation and rupture of fibre cell walls. By adjusting bottom-knife pressure and beating time (1–999 min, selectable time units) the unit delivers reproducible pulps for evaluation of sheet properties and process development. The machine supports automatic timing and bottom-knife high-pressure cleaning.

Applications

• Beating tests on plant fibres (wood, non-wood pulps)
• Testing of synthetic fibres, carbon fibre and glass fibre blends
• Pulping trials for papermaking production testing, quality control, process formulation, teaching and research

Test Standards

• ISO 5264/I
• TAPPI T200
• GB/T 24325-2009 Pulps - laboratory beating - Valley beater method

Key features

• Laboratory standard construction for repeatable experimental results
• Adjustable lever loading force (54 ± 1 N; changeable by weights)
• Automatic time control and selectable time units (s/min/h)
• Automatic cleaning with high-pressure bottom-knife wash
• Continuous water supply compatible

Technical specifications

• Model: 5036-HD
• Standard pulp capacity: 23 liters (pulp tank volume: 45 liters)
• Pulp mass (absolute dry pulp): 200 g – 700 g
• Flying knife roller: Ø194 × 155 mm (diameter × length)
• Rotation speed: (8.3 ± 0.2) r/s (≈ 500 ± 10 r/min)
• Motor supply: 220 V / 1200 W
• Control/auxiliary power: single-phase 220 V, 50 Hz / 400 W
• Water requirement: continuous water source, adjustable gap
• Lever loading force: 54 ± 1 N (weights replaceable)
• Beating time: adjustable from 1 to 999 min (time units switchable)
