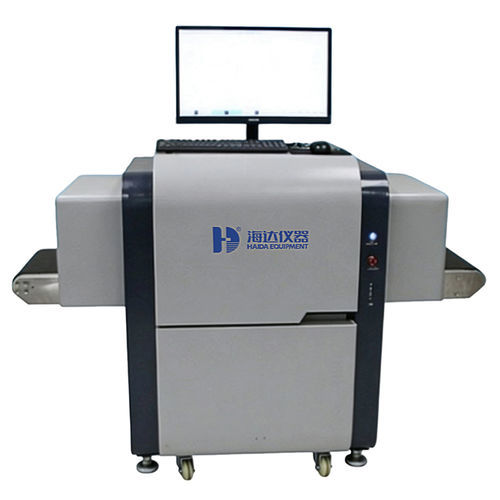

X-ray inspection machine 5152-HD

industrialautomatedbelt conveyor

Product Description
Industrial X-ray inspection equipment for detection of metal contaminants and foreign objects in consumer goods such as shoes, handbags and toys. Integrates advanced pattern recognition (neural networks, genetic algorithms) to provide assisted or automatic identification of specific defects and contaminants, improving inspection throughput and consistency.

Product Specifications

• Model: 5152-HD
• Channel opening (W×H): 500 mm × 250 mm
• Conveyor belt height from ground: 700 mm
• Detection accuracy (iron): 0.8 mm
• Maximum conveyor load: 25 kg
• Leakage dose: 0.502 µGy/h (measured at 5 cm from casing), compliant with radiation safety standards
• Operating voltage: AC 220V, 50±3 Hz
• Operating environment: 0℃–60℃; humidity 20%–90% (non-condensing)
• Equipment noise: ≤55 dB
• Standard throughput: 12 m/min (≈600 items/hour), speed adjustable
• Dimensions (L×W×H): 2200 mm × 1060 mm × 1200 mm

Products Advantages

• Custom manufacturing to match product dimensions and production line requirements
• On-site QC and pre-shipment checks with AQL where required
• Adjustable speed and detection parameters to optimise for different product types
• Designed for integration into automated inspection lines and conveyors

Application
Suitable for industrial inspection of shoes, handbags, toys, cordyceps and similar products to detect metal fragments, broken needle tips and other foreign objects during production and final quality control.

Technical specifications

• Model: 5152-HD
• Channel opening: 500 mm (width) × 250 mm (height)
• Conveyor belt height from ground: 700 mm
• Detection accuracy: 0.8 mm for iron
• Maximum conveyor belt load: 25 kg
• Leakage dose: 0.502 µGy/h (5 cm from casing)
• Operating voltage: AC 220V, 50±3 Hz
• Operating environment: Temperature 0℃–60℃; humidity 20%–90% (non-condensing)
• Equipment noise: ≤55 dB
• High-speed detection: standard 12 m/min (≈600 items/hour), adjustable
• Dimensions (L×W×H): 2200 mm × 1060 mm × 1200 mm
