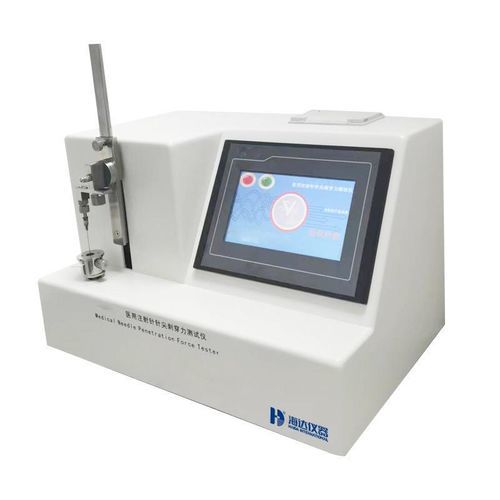

Needle penetration tester 8034-HD

sensorfor medical deviceshardware

Product description
The 8034-HD Needle Penetration Force Tester measures the penetration force of disposable injection needles. Designed for quality control, R&D and incoming inspection in medical device production, it supports routine testing of needles with nominal sizes from 0.18 to 3.4 mm and a test range up to 5 N.

Key benefits

• High-precision measurement: 0.001 N resolution using a high-precision force sensor with software and hardware protection.
• Data traceability: built-in force measurement and USB export for integration into QA systems.
• Configurable testing: adjustable moving speed (100 mm/min) and customizable power supply (AC220/50Hz).
• Appropriate fixtures: stainless steel fixture adapted for secure needle handling.
• Operational continuity: power-off data storage and printer output for documentation.

Product specifications
Model: 8034-HD
Nominal specification: 0.18-3.4 mm
Test range: 0-5 N
Resolution: 0.001 N
Moving speed: 100 mm/min
Power off storage: Available
Power supply: AC220/50Hz (customizable)
Sensor: High-precision force sensor with software & hardware protection
Fixture material: Stainless steel
Printer: printer for needle test output
Force measuring device: Built-in
Data storage/export: USB drive import to computer

Applications

• Penetration force testing of disposable injection needles
• Incoming inspection, batch release and R&D in medical device manufacturing
• Quality documentation and regulatory compliance with exportable test data
