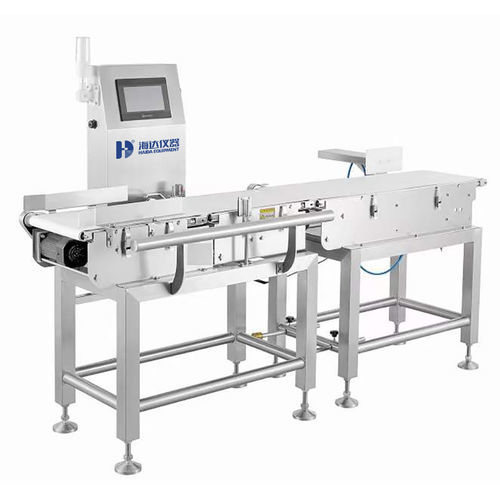

Checkweigher for the food industry 5148-HD

for the pharmaceutical industryfor logisticsfor the packaging industry

Product overview
This automatic checkweigher performs online weight detection, upper/lower-limit judgment, weight grading and automatic sorting for products on automated production lines and logistics conveyors. It is suitable for inline inspection in sectors such as pharmaceuticals, food, toys, hardware and daily chemicals.

Applications

• Online weight inspection on production and packaging lines
• Automatic rejection of underweight or overweight products
• Integration with conveyor systems and downstream sorting equipment

Working principle
Products are fed from the upstream conveyor through a guide belt and spaced evenly before entering the weighing belt. A front photoelectric sensor triggers the weighing sequence. The weight sensor measures the product as it passes the weighing section and the system displays the value in real time. The controller compares the measured value with preset reference and limit values to classify products and activate the rejection mechanism for non-conforming items.

Key features

• Online checkweighing and automatic sorting
• Adjustable conveying speed and output (packs/min)
• Pneumatic push-rod rejection for reliable separation
• Real-time weight display and data output for traceability
• Configurable preset modes and customizable conveyor height

Caractéristiques / Spécifications techniques

• Model: 5148-HD
• Check-weighing range: 10g-3000g
• Conveying speed (m/min): 10-40
• Adjustable speed (packs/min): 30-65 packs
• Standard accuracy: ±0.5g-3g
• Feed section dimensions (L×W): 400×300 mm
• Weighing section dimensions (L×W): 400×300 mm
• Rejection section dimensions (L×W): 500×300 mm
• Rejection method: Pneumatic push rod rejection
• Preset modes: 50 groups
• Power supply: 220V 50Hz, single phase, 300W
• External air source: 0.6 MPa
• Air pressure interface: 8 mm
• Weight: 80 kg
• Ground height from conveyor belt: 700±50 mm (customizable)
• Overall dimension: 1350×810×1200 mm
