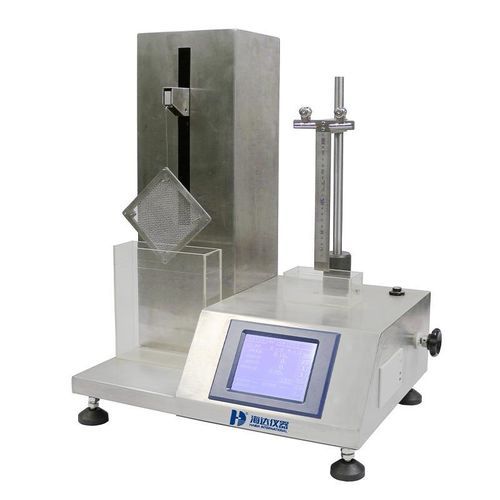

Performance tester 5021-HD

for fabriclaboratorybenchtop

Product Description
Used to determine liquid absorption performance of nonwoven fabrics, including liquid absorption time, liquid absorption volume, liquid core absorption height and absorption rate. The instrument supports automated measurement cycles and data storage for laboratory and quality-control environments.

Standards

• ISO 9073-6:2000
• GB/T 24218.6 Textiles - Test methods for non-woven Part 6: Absorption
• FZ/T 64012.2 Hydroentangled nonwoven Part 2: Rolls for hygiene

Fixture Details

• Baby type
• Adult type
• Adult type with sample holder
• Baby type with sample holder

Product Specifications

• Model: 5021-HD
• Range: 0~1000 g ±0.01 g; Test accuracy: 0.01% F·S
• Test speed: 1~10 mm/s (adjustable)
• Time settings: Suction time 0–999 s; Dropping time 0–150 s (adjustable)
• Sample sizes: 100 x 100 mm (liquid absorption volume); 30 x 250 mm (core absorption rate)
• Printing: Embedded thermal printer
• Dimensions: 540 x 380 x 650 mm
• Weight: 25 kg
• Power: 220 V, 50 Hz

Product Characteristics

• Level II measuring instrument
• Advanced ARM processing core
• Automatic wavelength setting
• 5.6-inch color touch screen
• Qualitative and quantitative test functions
• Quick initialization to measurement state
• Tungsten/xenon lamp life protection function
• Power-off protection with memory for test data, spectra, regression equations and correction parameters

Technical Specifications

• Model: 5021-HD
• Range and accuracy: 0~1000 g ±0.01 g; 0.01% F·S
• Speed: 1~10 mm/s, user-set
• Time ranges: Suction 0–999 s; Dropping 0–150 s
• Sample sizes: 100 x 100 mm; 30 x 250 mm
• Printer: Embedded thermal printer
• Overall dimensions: 540 x 380 x 650 mm
• Net weight: 25 kg
• Power supply: 220 V, 50 Hz
