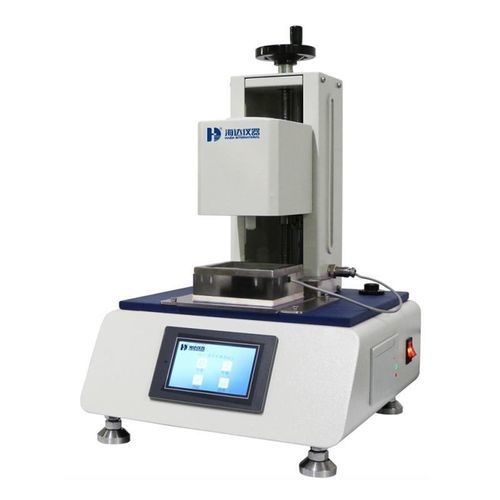

Leakage tester 5023-HD

for sheet materialsR&Dlaboratory

Product overview
Used to evaluate liquid penetration of thin nonwoven sanitary materials including diapers and sanitary napkins; suitable for quality control and R&D applications.

Test standards
FZ/T60017; GB/T24218.8; GB/T24218.13; GB/T24218.14

Key specifications

• Model: 5023-HD
• Control liquid flow rate: 25 ml flows in (3.5±0.25) s
• Penetration cycles: configurable 1–5 times
• Interval setting time: 20–99 s (adjustable)
• Substrate material: Plexiglass
• Base plate: approx. 125 x 125 x 5 mm
• Penetrating disc size: 100 x 100 x 25 mm; total weight 500 g ± 5 g
• Electrode diameter: 1.6 mm
• Power supply: AC 220 V ±10%, 50 Hz; Power consumption: 50 W
• Net weight: 22 kg; Dimensions: 410 x 370 x 500 mm

Fixture options

• Baby type
• Adult type
• Adult type with sample
• Baby type with sample

Key features

• Color touch screen with Chinese and English menu for intuitive operation
• Built-in thermal printer for immediate on-site printout of test results
• Penetrating disc manufactured from specially processed plexiglass
• All data and statistical results accessible and exportable from the host
• Disc positioning device to prevent damage and ensure repeatable placement
• Electrodes resistant to corrosion
