Performance tester 5033-HD

motorfor paperfor fabric

Product overview

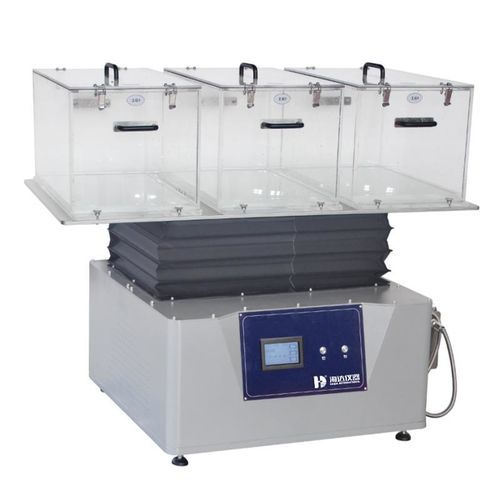

The 5033-HD Flushability Tester is designed to evaluate the dispersibility and degradation behavior of disposable sanitary non-woven materials in a toilet-like environment, including wet toilet paper, toilet wipes (dry/wet), feminine hygiene wipes and infant care wipes. The unit reproduces agitation and sieving to provide repeatable, quantitative results relevant to flushability assessments.

Standard
GB/T 40181-2021.

Technical specifications

• Model: 5033-HD
• Test speed: 1–50 RPM (adjustable)
• Measuring time: 0–9,999 minutes 59 seconds (programmable)
• Shaking box: 3 stations
• Shaking box internal dimension (L×W×H): 430×330×300 mm
• Mesh screen diameter: φ200 mm
• Mesh aperture: φ12.5 mm
• Power: 220 V, 50 Hz, 500 W
• Overall dimensions (L×W×H): 1100×600×600 mm
• Weight: approx. 80 kg
• Standard: GB/T 40181-2021

Fixtures

• Baby-type holder
• Adult-type holder
• Adult-type holder with sample fixture
• Baby-type holder with sample fixture

Key features

• Color touchscreen with English/Chinese language selection
• Servo motor drive for stable operation and accurate speed control
• Sliding, removable test boxes for easy loading and maintenance
• Supplied with standard mesh sieve, flowmeter and spray nozzle to ensure consistent test conditions

Applications

• Manufacturers of wet wipes and disposable sanitary non-woven products
• Quality control and test laboratories
• Research and development departments evaluating flushability and product formulation

Ordering and options
Order model 5033-HD and specify required fixture type. Optional accessories and calibration services are available on request.
