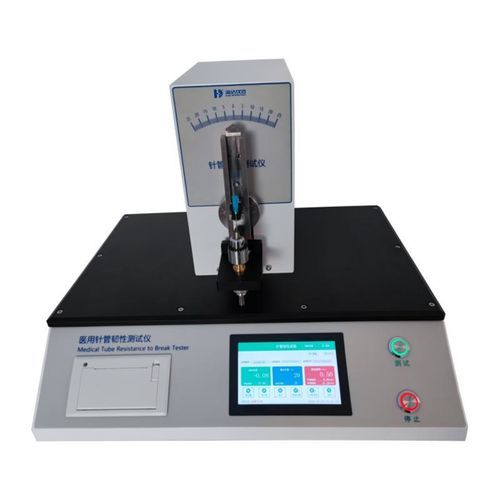

Resistance tester 8031-HD

impactcompressionfor medical devices

Product description
The 8031-HD resistance-to-break tester is designed to determine toughness and resistance-to-break of syringe needles, prefilled syringe needles and infusion needle tubes. It is suitable for medical device manufacturers, quality control departments, third-party testing laboratories, universities and research institutes.

Design and fixture
The machine uses a rigid clamping fixture that firmly holds the needle tube without rubber pads. Rigid clamping prevents tube compression, ensures the actual swing angle meets standard requirements and reduces test deviation compared with soft (rubber-pad) clamps.

Product specifications
Model: 8031-HD
Applicable tube wall: normal wall, thin wall, ultra-thin wall
Needle tube diameter: 0.1–4.0 mm
Test frequency: 0.5 Hz
Swing angles: 15°, 20°, 25°
Clamping method: rigid clamping (no rubber-pad compression)
Clamping span: 6–95 mm
Swing angle accuracy: ±0.05°
Test cycles: bidirectional force 20 times (adjustable)
Dimensions (W×D×H): 460 × 380 × 360 mm
Power supply: AC 220 V / 50 Hz
Net weight: 24 kg

Applications
Used for toughness and resistance-to-break testing of syringe and infusion needle tubes during production, quality control and laboratory testing.

Technical specifications

• Model: 8031-HD
• Applicable tube wall types: normal, thin, ultra-thin
• Applicable needle tube diameter: 0.1–4.0 mm
• Test frequency: 0.5 Hz
• Selectable swing angles: 15°, 20°, 25°
• Clamping method: rigid clamp (avoids rubber-pad compression errors)
• Clamping span range: 6–95 mm
• Swing angle accuracy: ±0.05°
• Test cycles: bidirectional force 20 times (adjustable)
• Overall dimensions (W×D×H): 460 × 380 × 360 mm
• Power supply: AC 220 V / 50 Hz
• Net weight: 24 kg
