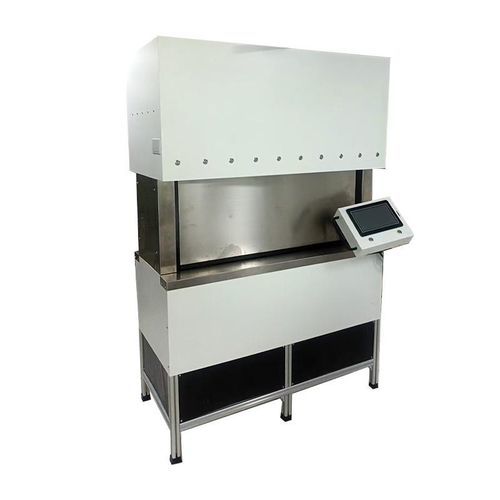

Digital leak tester 5108-HD

immersionleakagefor packaging

Product overview
Designed for quality control of condoms and rubber sleeves, the 5108-HD performs water and electrical pinhole leakage tests on male and female condom types. The unit integrates 10 independent automatic lifting test heads and supports data acquisition and transfer to a computer for production-line and laboratory use.

Key features

• Dual test modes: visual water leakage test and electrical conductivity inspection.
• Replaceable measuring heads for male and female condom types.
• 10 independent automatic lifting test heads for simultaneous testing.
• Automatic water injection adjustable from 50 mL to 1000 mL (±10 mL); water temperature control 10℃–40℃; dwell time 10±2 s.
• Electrical test: DC 10 V (10±0.1 V) with voltmeter accuracy ±0.3 mV and precision resistance 10±0.5 kΩ.
• Data acquisition port with automatic transmission to PC; results can be printed and saved.
• Wide size range compatibility for different sample dimensions.

Standards
GB7544, ISO 4074, ISO 25841

Technical specifications

• Model: 5108-HD
• Test positions: 10
• Water temperature: 10℃–40℃; dwell time: 10±2 s
• Injection volume: 50–1000 mL ±10 mL (automatic, adjustable)
• DC voltage: 10±0.1 V
• Voltmeter accuracy: ±0.3 mV
• Precision resistance: 10±0.5 kΩ
• Dimensions (L×W×H): 1000×450×1600 mm
• Weight: approx. 180 kg

Applications

• Condom manufacturing quality control
• Packaging and final inspection lines
• R&D and quality laboratories for barrier testing
• Rubber sleeve manufacturers
