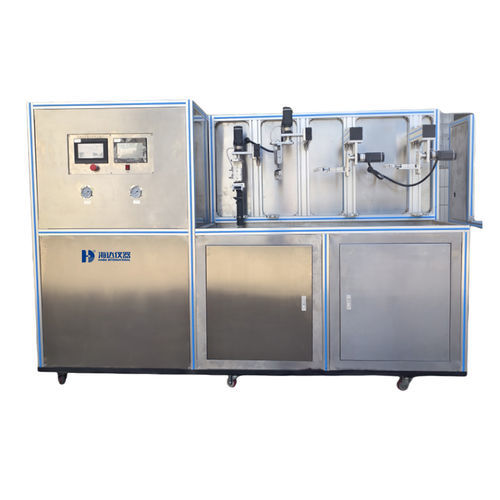

Life cycle testing machine 5075-HD

endurancecomputer-controlledPLC-controlled

Product Description
The Mixing valve cartridge life test machine model 5075-HD is engineered to evaluate the lifespan and performance of hot-and-cold sanitary tapware mixing cartridges. It is built to meet ASME A112.18.1-2005 / CSA B125.1-05 / GB18145 and EN817 test conditions for hot/cold mixing spool life tests.

Main features

• Model: 5075-HD
• Test sample configuration: 2 rising, 2 side stations
• Mounting: Upper and lower adjustable mounting blocks for different cartridge sizes
• Cold and hot water unit: 1 set of 500 L tanks; hot and cold inlet temperatures selectable independently
• Temperature range: 5℃ ~ 90℃ (settable)
• Operating hours timer: Up to 99H59M59S; continuous operation with pause function
• Additional functions: Cleaning system and drainage system (optional upgraded drainage motor)
• Test head: Adjustable forward and backward stroke; sample angle adjustable
• Water return: Suction pump
• Product movement control: Individual up/down and left/right control per sample
• Test speed: 0–30 cycles/min (settable)
• Counting function: 0–99,999,999 (settable)
• Control mode: PLC software
• Operation interface: 7" color touch screen
• Power: 380V 50Hz, 24 kW; Air supply: 6 kg
• Material (construction): SUS304 stainless steel

Commercial / Delivery Information

• Price terms: FOB, CIF
• Payment terms: L/C, D/P, T/T
• Package: Each set protected with resin fiber and PP film, then placed into a strong wooden case; operation manual and video included
• Delivery time: 15 days after order

Technical specifications

• Model: 5075-HD
• Sample stations: 2 rising + 2 side
• Water capacity: 500 L set for hot and cold
• Temperature: 5℃–90℃ (adjustable)
• Timer: Up to 99H59M59S
• Speed: 0–30 cycles/min
• Counter: 0–99,999,999
• Control: PLC, 7" color touch screen
• Power / Air: 380V 50Hz, 24 kW / 6 kg
• Frame / Wetted parts: SUS304 stainless steel
