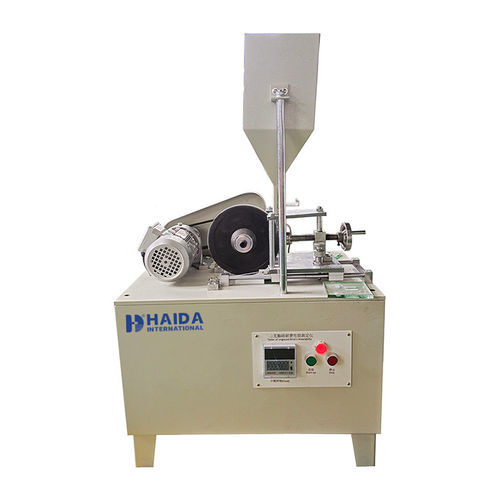

Abrasion tester 60098-HD

for machinesR&Dbenchtop

Product Description
Model 60098-HD is a laboratory-grade wear-resistance tester designed for unglazed ceramic tiles and mosaics. The instrument performs standardized abrasive wear tests in compliance with GB/T3810.6—2016 and ISO10545-6:2010. It features preset and automatic control of grinding-wheel speed and a regulated feeding mechanism for the abrasive material, ensuring reproducible results for quality control and R&D applications.

Technical Specifications

• Standards satisfied: GB/T3810.6—2016; ISO10545-6:2010 (non-glaze tiles and mosaic wear-resistance test)
• Model: 60098-HD
• Grinding wheel RPM: 75 r/min (preset and automatically controlled)
• Steel wheel diameter: Φ200 ± 0.1 mm
• Feeding speed of grinding material: (100 ± 10) g / 100 r
• Power supply: 380V, 3 phase, 4 wire connection

Trade Information

• Price terms: FOB, CIF
• Payment methods: L/C, D/P, T/T
• Packaging: Each set protected with resin fiber and PP film, then placed in a strong wooden case; operation manual and instructional video included
• Delivery time: 15 days after order

Product Advantages

• Standards Compliance — Designed to meet international and national test standards for consistent, comparable results.
• Automated Control — Preset and automatic RPM control for repeatable test conditions.
• Robust Specifications — Precise steel wheel (Φ200 ±0.1 mm) and controlled abrasive feed for accurate wear measurement.
• QC Support — Supplied with documentation and test procedure guidance to facilitate integration into QC workflows.
