Thickness tester 5104-HD

for filmfor productionlaboratory

Product overview

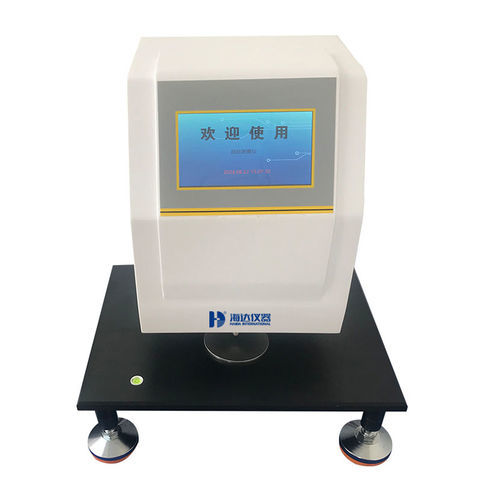

The 5104-HD is an automatic condom thickness tester designed for precise, repeatable thickness measurement of latex and similar film materials in production and laboratory quality-control environments. It uses a mechanical contact method with standardized contact area and pressure to ensure comparability of results.

Key features

• Automatic measuring head: automatic lift/lower cycle to minimize operator influence and improve repeatability.
• Built-in micro printer: immediate printout of each measurement and summary statistics including average and size distribution.
• Real-time display and automatic statistics: on-screen measurement display, automatic calculation of averages and counts, and printing functions.
• Standardized contact area and measurement pressure: designed to comply with standard contact area and pressure; non-standard customizations available on request.
• Dedicated automatic sampler: supports one-click fully automatic multi-point sampling to accelerate inspection throughput.
• Data interface: standard RS232 interface for external connection and data export to a PC or LIMS.

Test standards
GB 7544, ISO 4074

Technical specifications

• Model: 5104-HD
• Test range: customizable (consult supplier)
• Measuring pressure: 17.5 ± 1 kPa
• Resolution: 0.1 μm
• Accuracy: ±1 μm
• Contact area: 50 mm²
• Speed: 10 cycles/min
• Power: AC 220V 50Hz
• Dimensions (L×W×H): 450 × 340 × 390 mm
• Weight: 30 kg
• Supported standards: GB 7544, ISO 4074

Applications
Suitable for production quality control, incoming inspection, laboratory testing and certification workflows in condom and latex film manufacturing.

Data & integration
The instrument provides printed records and an RS232 port for data transmission to external systems, enabling traceable measurement logs and integration with quality management systems.
