Life cycle testing machine 5063-HD

fatigueendurancestatic load

Product Overview

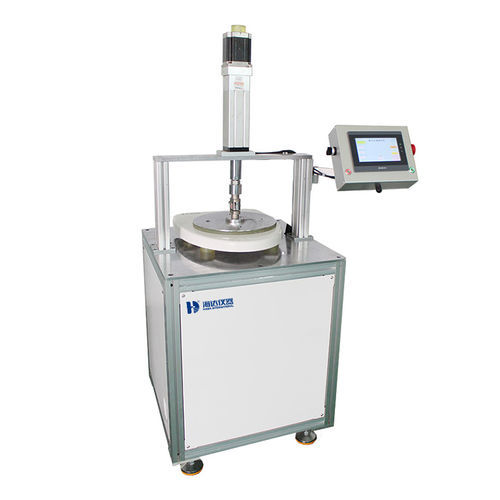

IEC 60335-2-84 Toilet Seat Endurance Test Machine 5063-HD performs repeated fatigue and strength tests on toilet lids and seat rings under programmable force, stroke, displacement, time and speed to evaluate product durability and quality.

Design & Construction

• Main components: cylinders, force sensors, guide rods, PLC software, touchscreen control, magnetic fixture blocks, A3 steel plates, stainless steel materials.
• Configured for both fatigue (life) tests and static strength tests on lids and seat rings.

Test Standards

• IEC 60335-2-84:2019
• GB/T 4706.53-2024

Key Features

• Dual independent test stations allowing simultaneous, non-interfering operation.
• Programmable PLC with touchscreen for force, stroke, speed and cycle settings.
• Force range 0–4000 N and stroke 0–500 mm (PLC programmable).
• Force accuracy 0.001 grade and high sampling rate 1/250,000.
• Pneumatic actuation with programmable test speed up to 500 mm/min and configurable delay.
• Cycle counter programmable to 9,999,999 cycles; test duration programmable.
• Pressure plate options for different contact conditions and materials.
• Compact footprint: 1200 x 800 x 1630 mm; weight 300 kg; power 220 V / 50 Hz.

Technical Specifications

• Model: 5063-HD
• Test Stations: 2 stations (independent operation)
• Functional Modes: Group A – Lid load fatigue test; Seat ring load life test. Group B – Seat ring strength & Lid strength test
• Test Stroke: 0-500 mm (PLC programmable)
• Test Force: 0-4000 N (PLC programmable)
• Force Accuracy: 0.001 grade
• Sampling Rate: 1/250,000
• Test Speed: 0-500 mm/min (PLC programmable)
• Control Method: PLC software + touchscreen operation
• Motion Method: Pneumatic control (up/down movement)
• Test Duration: 0-99H99M99S (PLC programmable)
• Delay Function: 0.1-9.95 s settable
• Cycle Count: 0-9,999,999 cycles (PLC programmable)
• Sample Size (fixture reference): 720 x 420 x 800 mm (L x W x H)
• Pressure Plate Configuration: ① 300 mm: 5 mm steel + 10 mm rubber; ② 76 mm rubber disc (19 mm thick, Shore hardness 70°)
• Power Supply: 220 V / 50 Hz
• Equipment Weight: 300 kg
• Dimensions (W x D x H): 1200 x 800 x 1630 mm
