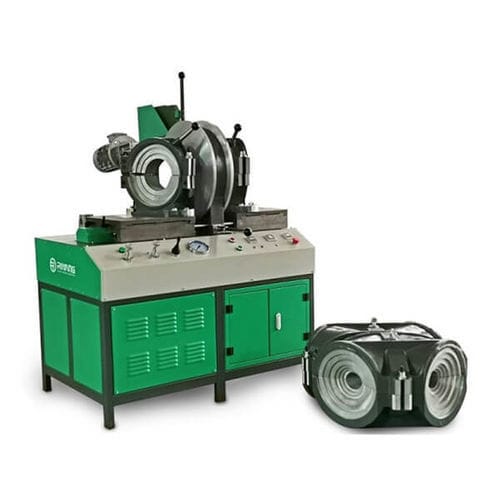

Butt welding machine SWT-MA315thermalautomaticfor plastics
Add to favorites
Compare this product
Characteristics
- Technique
- butt, thermal
- Operational mode
- automatic
- Applications
- for plastics
- Power supply
- 380V three-phase
- Other characteristics
- electric, hydraulic
- Power
7,250 W
Description
Overview
HDPE fitting fabrication welding machine SWT-MA315 designed for producing plastic pipe fittings such as elbows, tees, crosses and wyes. Intended for workshop and factory use, the machine integrates hydraulic-driven motion, controlled butt-fusion cycle and an electric trimming unit for a complete fitting production workflow.
Key features
Standard composition / included items
Technical specifications
HDPE fitting fabrication welding machine SWT-MA315 designed for producing plastic pipe fittings such as elbows, tees, crosses and wyes. Intended for workshop and factory use, the machine integrates hydraulic-driven motion, controlled butt-fusion cycle and an electric trimming unit for a complete fitting production workflow.
Key features
- Hydraulic-driven core machine framework with two carriages for stable positioning
- Automated butt-fusion welding process with repeatable parameters
- Double hydraulic system layout derived from industry heat-fusion engineering
- Manual hydraulic control panel with planar key/button layout for operator ergonomics
- Color display for process feedback and status monitoring
- USB port for data logging and firmware updates
- Integrated electric trimming mechanism with gears and safety microswitch
- PTFE-coated heating plate with steel shield for non-stick operation and easy cleaning
- Complete set of clamps and aluminium inserts: left/right elbow clamps and left/right 90° tee/cross clamps (φ315 mm clamps with inserts φ90–φ280 mm)
- Oil cylinder components and multiple safety protections
Standard composition / included items
- Core machine with two hydraulic carriages
- Left and right elbow clamps for φ315 mm plus aluminium inserts φ90–φ280 mm
- Left and right 90° tee and cross clamps with same set of inserts
- Electric trimmer with safety microswitch
- PTFE-coated heating plate with steel protective shield
- Manual hydraulic control interface and color display
Technical specifications
- Model: SWT-MA315
- Welding range (OD): 90–315 mm
- Welding range (inch IPS): 3–12 in IPS
- Fittings types: Elbow 0°–90°, Tee 90°, Cross, Wye 45°/60°
- Applicable materials: HDPE, PP, PVDF
- Control system: Manual hydraulic control
- Power supply: 380 VAC, 50/60 Hz
- Total power consumption: 7.25 kW (heater 5.0 kW, trimmer 1.5 kW, hydraulic 0.75 kW)
- Max working pressure: 60 Bar
- Data interface: USB port for data saving and firmware upgrades
- Warranty: 2-year quality warranty
