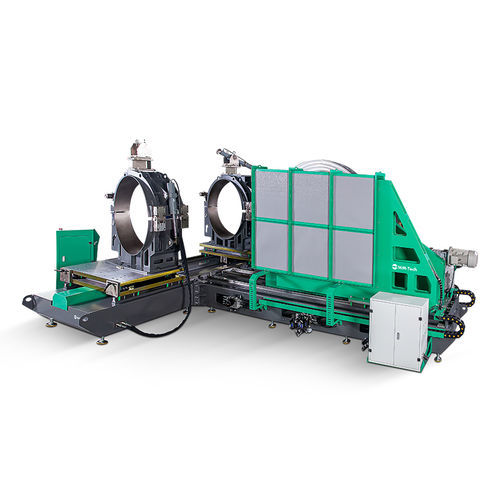

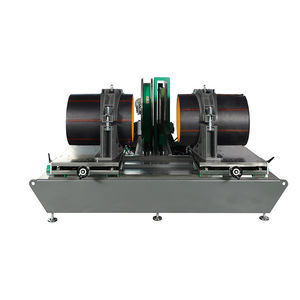

Butt welding machine SWT-MA1000automaticlarge-diameterfor pipeline parts
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- automatic
- Applications
- for plastic pipe, for pipeline parts, for the plastics industry, large-diameter
- Power supply
- 380V three-phase
- Other characteristics
- precision, high-precision, CNC, hydraulic, programmable, heavy-duty, with servo-motor, with data logging
- Power
71,000 W
Description
The SWT-MA1000CNC is an automatic CNC-controlled HDPE fitting fabrication welding machine covering 630–1000 mm (24"–40" IPS), designed for precise, traceable butt welding of plastic pipe fittings in factory and pipeline engineering environments.
Key features
Process & operation
Applications
Technical specifications
Key features
- Intelligent CNC control with color HMI and IoT capability for remote diagnostics and software updates.
- Built-in memory logging with USB export for welding cycle data and software upgrade import.
- Servo-driven heater and trimmer for precise, fast and low-noise operation.
- Patented insert-type heating element allowing replacement of faulty modules only, reducing maintenance downtime.
- High-strength trimmer plate with reversible blades for efficient, clean facing.
- Heavy-duty powder-coated frame; core components from established suppliers (Siemens, Wika, Schneider, Dupont).
Process & operation
- Fully automatic CNC operation: operator sets SDR, pipe diameter and welding standard; the machine executes and logs each weld cycle automatically.
- Automatic butt welding with enhanced CNC programming for full welding traceability and repeatability.
- Hydraulic actuators with dedicated oil cylinder and dual-hydraulic architecture for stable clamping and welding force control.
Applications
- Production of pipe fittings: elbows (0°–90°), tees, crosses and wyes (45°/60°) in fittings factories.
- Pipeline engineering contractors and suppliers requiring high-precision, traceable fitting fabrication.
- Industrial HDPE pipe processing, including boat construction and large-diameter pipe systems.
Technical specifications
- Model: SWT-MA1000CNC (Operation: CNC — Automatic)
- Welding range (pipe diameter): 630 mm – 1000 mm (24"–40" IPS)
- Fittings produced: elbows 0°–90°, tees, crosses; wyes 45°/60°
- Power supply: 380 V AC, 50/60 Hz
- Total power: 71 kW
- Pressure range: 0 – 160 bar
- Data & connectivity: USB port for data export and software updates; optional IoT module for remote service and diagnostics
- Drive & mechanics: hydraulic system with oil cylinder (dual-hydraulic architecture), servo motors for heater/trimmer
- Maintenance & safety: patented replaceable heating insert, safety protection features, color display HMI
- Warranty: 2-year quality warranty
Catalogs
No catalogs are available for this product.
See all of Hebei Mingmai Technology Co., Ltd.‘s catalogsOther Hebei Mingmai Technology Co., Ltd. products

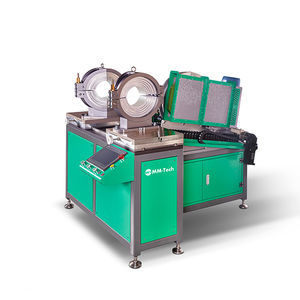

Workshop Fitting Fabrication Machine
