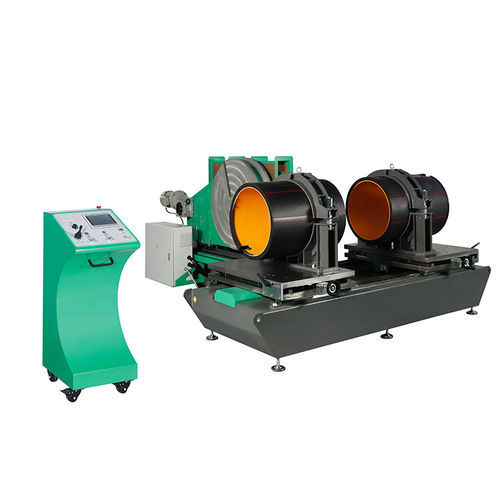

Thermal welding machine SWT-MA450

automatic380V three-phaseCNC

The SWT-MA450CNC is a CNC-controlled production machine for fabrication of HDPE fittings (elbows, tees, crosses, wyes), designed for precision, automated workshop production in HDPE, PP and PVDF materials.

Features & components

• Machine body with two hydraulically driven working tables for stable clamping and smooth operation.
• Automatic CNC control panel with colour display, internal memory, USB port for data export and firmware updates; printer output supported.
• Double-precision hydraulic system engineered to relevant heat-fusion standards for accurate positioning and welding control.
• Hydraulically actuated milling cutter driven by an electric motor for controlled machining of joint surfaces.
• Hydraulically actuated Teflon-coated heating plate providing non-stick surface and precise positioning.
• Complete set of aluminium inserts and steel clamps supplied for elbows, tees, crosses and wyes.
• Integrated safety protection systems and hydraulic (oil) cylinder for reliable operation.
• USB data logging for welding records and process traceability.

Applications

• Manufacture of pipe fittings for pipeline engineering firms, fitting manufacturers and suppliers; suitable for workshop production and industrial series of HDPE, PP and PVDF fittings.

Technical specifications

• Model: SWT-MA450CNC
• Operation: CNC (automatic)
• Welding range: 200–450 mm (8\"–18\" IPS)
• Fabricating fittings: elbows 0°–90°; tees and crosses; wyes 45°/60°
• Power supply: 380 V AC, 50/60 Hz
• Total power: 26 kW
• Hydraulic pressure range: 0–160 bar
• Materials: HDPE, PP, PVDF
• Data interface: USB for export and software updates; printer support for reports
• Warranty: 2-year quality warranty
