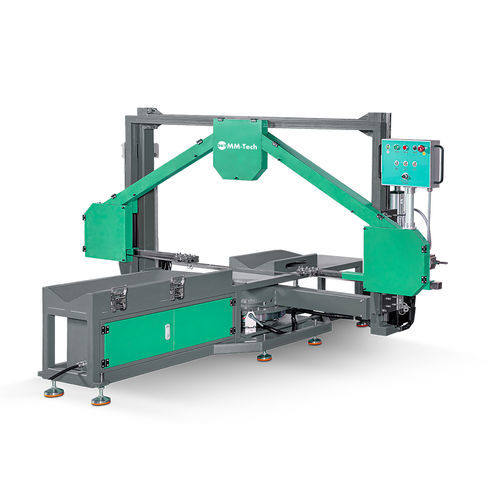

Band saw SWT-C400

for PVCfor pipesfor tubes

The SWT-C400 / SWT-C450 pipe band saws are industrial multi-angle machines for precise angled cutting of thermoplastic pipes, designed for workshop fitting fabrication and the production of pipe fittings. They use electric-cylinder actuation to ensure consistent, hygienic operation and are suited for production environments requiring repeatable, multi-angle cuts.

Key features

• No hydraulic oil: electric-cylinder actuation eliminates hydraulic oil leakage risks and the need for hydraulic oil maintenance, reducing upkeep and improving workplace cleanliness.
• Electric cylinder: enables rapid, smooth saw carriage movement with improved travel velocity, synchronous accuracy and lower noise compared to hydraulic systems.
• Multi-angle cutting without repositioning the pipe: the saw housing rotates to change cutting angle, speeding fabrication of WYE-type fittings and complex angle cuts.
• Broad material compatibility: designed to cut HDPE, PP, PVDF, PPR and PVC pipe materials.

Standard composition

• Pipe supporting stand
• Control panel
• Saw body
• Clamping belt / pressure bar

Packing

• Machines shipped with secure professional packing suitable for single or batch orders to ensure equipment arrives intact (packing images available on request).

Applications

• Cutting pipes at different angles for fitting fabrication
• HDPE boat construction and other thermoplastic assembly
• Use by pipe manufacturers, distributors and workshop fabricators in plumbing, gas and water supply industries

Technical specifications

• Model: SWT-C400 (OD 90 mm – 400 mm) · SWT-C450 (OD 90 mm – 450 mm)
• Cutting range: SWT-C400 OD 90 mm – 400 mm; SWT-C450 OD 90 mm – 450 mm
• Power supply: 380 V, 3P, 50/60 Hz
• Rated power: 2.5 kW
• Line speed: 0 – 255 m/min
• Footprint: 180 cm × 200 cm
• Maximum cutting angle: 67.5°
• Materials: HDPE, PP, PVDF, PPR, PVC
• Cutting angle error: ≤ 1°
• Feeding speed: Adjustable
• Net weight: 780 kg
