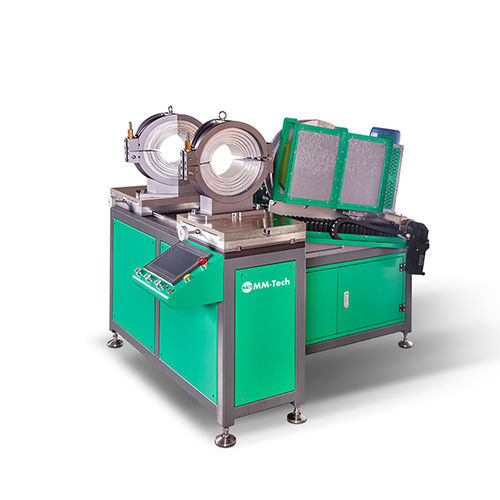

Butt welding machine SWT-MA315

automaticwith trolleyfor thermoplastics

The SWT-MA315 CNC is a fully automatic CNC-controlled welding machine for fabrication of small- to medium-diameter thermoplastic pipe fittings. It combines CNC control, servo drives, PLC management and data traceability for repeatable industrial production.

Key features

• Automatic CNC control with guided welding workflows to minimize operator intervention and enable batch production
• Main clamps in die-cast aluminium, finish-machined on CNC centres for structural stiffness and dimensional accuracy
• Servo-driven facer, heater and carriage with encoder feedback and PLC control for fast, stable positioning
• Mobile control console with 10-inch MCGS touch screen (1024×600) and icon-based interface for intuitive operation
• Data traceability: stores up to 10,000 welding records; export of reports in PDF via USB and data export/print capability
• Integrated IoT module for remote diagnostics, software updates and real-time technical support

Options / Accessories

• Clamps, fixtures and auxiliary tooling available (see gallery and options)

Services

• 2-year quality warranty
• Pre- and post-sales technical support and warranty service
• On-site installation, training and professional service team

Technical specifications

• Model: SWT-MA315 CNC
• Welding range: 90 mm – 315 mm (3″ IPS – 12″ IPS)
• Fitting types: 0°–90° (Elbow, Tee, Cross); 45°/60° (Wye)
• Applicable materials: HDPE, PP, PVDF
• Control system: Automatic CNC with PLC
• Power supply: 380 V, 50 Hz
• Total power consumption: 10 kW
• System force: 900 N
• Operator interface: 10-inch MCGS touch screen (1024×600) on mobile console
• Data capacity: up to 10,000 welding records with USB PDF export
• Drive: servo motors with encoder feedback; PLC-managed positioning
