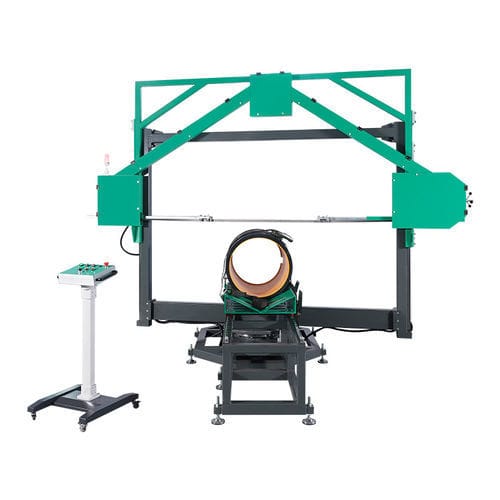

Band pipe cutting and beveling machine SWT-C series

motorizedstationaryhigh-speed

Multi-angle band saws designed for precise, versatile pipe cutting. They support positive and negative cutting angles from +67.5° to -67.5° and deliver more uniform cuts using an electric cylinder instead of hydraulic actuation. Intended for pipe manufacturers, distributors and traders for industrial applications (plumbing, gas, water) and batch production.

Key features

• Cutting angle: positive and negative up to ±67.5°, enabling complex cuts and Y-type fittings.
• Feed system: adjustable feed speed to match different materials and wall thicknesses.
• Drive & construction: industrial-grade design for repetitive production use.
• Electric cylinder option: provides steadier, more consistent cuts compared with hydraulic systems.
• Blade speed: up to 255 m/min depending on model; feed speed adjustable.

Standard equipment

• Pipe support stand
• Auxiliary bench for cutting tees
• Pressure bar

Technical specifications (by model)

• SWT-C630 — Cutting range: 110 ≤ a ≤ 630 mm; Max cut arc: 0 ~ 67.5°; Line speed: 0 ~ 255 m/min; Feed: adjustable; Supply: 380V, 50Hz; Total power: 3.7 kW.
• SWT-C800 — Cutting range: 90 ≤ a ≤ 800 mm; Max cut arc: 0 ~ 67.5°; Line speed: 0 ~ 255 m/min; Feed: adjustable; Supply: 380V, 50Hz; Total power: 4 kW.
• SWT-C1000 — Cutting range: 315 ≤ a ≤ 1000 mm; Max cut arc: 0 ~ 67.5°; Line speed: 0 ~ 250 m/min; Feed: adjustable; Supply: 380V, 50Hz; Total power: 3.7 kW.
• SWT-C1200 — Cutting range: 630 ≤ a ≤ 1200 mm; Max cut arc: 0 ~ 67.5°; Line speed: 0 ~ 250 m/min; Feed: adjustable; Supply: 380V, 50Hz; Total power: 5.5 kW.
• SWT-C1600 — Cutting range: 630 ≤ a ≤ 1600 mm; Max cut arc: 0 ~ 67.5°; Line speed: 0 ~ 250 m/min; Feed: adjustable; Supply: 380V, 50Hz; Total power: 5.5 kW.

Applications

• Manufacture of pipe fittings (tees, Y-fittings), workshop production and serial fabrication.
• Plumbing, gas distribution, water supply and industrial pipe processing.

Packaging and warranty

• Packaged for safe transport in single units or batches.
• Warranty: 2 years.
