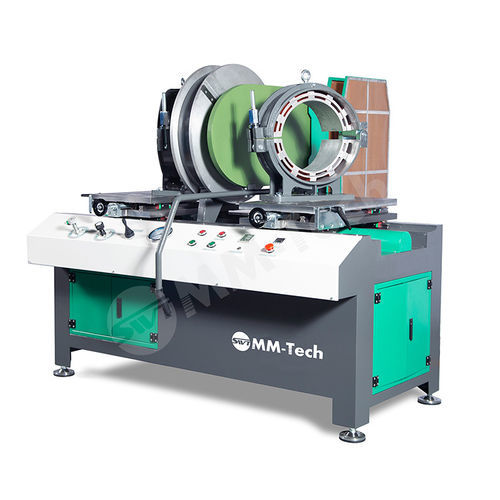

Butt welding machine SWT-MA400hot platemanualwith trolley
Add to favorites
Compare this product
Characteristics
- Technique
- butt, hot plate
- Operational mode
- manual
- Configuration
- with trolley
- Applications
- for plastic pipe, for pipeline parts, for the plastics industry
- Power supply
- 380V three-phase
- Other characteristics
- precision, hydraulic, with data logging
- Power
11,950 W
Description
Overview
Key features
Applications
Standard composition / Components included
Technical specifications
- Industrial-grade machine for fabrication of plastic pipe fittings (elbows, tees, crosses, wyes) in workshop or factory environments. Designed for repeatable butt-fusion welding of fittings from 90 mm to 400 mm (3"–16" IPS) using a two-carriage hydraulic system and a PTFE-coated heating plate.
Key features
- Hydraulic two-carriage system for smooth, stable movement.
- Automatic butt-welding sequence for consistent joints.
- Manual hydraulic control panel with planar layout of keys and buttons for easy operation.
- USB port for data saving and software upgrades.
- Hydraulic oil cylinder for clamping and actuation.
- Built-in safety microswitches and protective designs.
- Electrical trimmer with gears and safety microswitch for controlled trimming.
- PTFE-coated heating plate with steel shield for non-stick performance and durability.
- Elbow, tee and cross clamps with left/right fixtures and full set of aluminum inserts φ90–φ280 mm (clamp φ315 mm).
Applications
- Factories and manufacturers producing HDPE, PP or PVDF pipe fittings.
- Pipeline engineering companies and suppliers requiring high-precision welded fittings.
- Specialized fabrication such as HDPE boat components and other molded/welded fittings.
Standard composition / Components included
- Two-carriage base machine driven by a hydraulic system.
- Manual hydraulic control panel with planar functional keys.
- Electrical trimmer equipped with gears and safety microswitch.
- PTFE-coated heating plate with steel shield.
- Elbow clamps (left/right) φ315 mm and aluminium insert set φ90–φ280 mm.
- Tee and cross 90° clamps (left/right) φ315 mm with aluminium insert set φ90–φ280 mm.
Technical specifications
- Model: SWT-MA400 (manual operation)
- Welding range: 90–400 mm (3"–16" IPS)
- Fitting types: Elbow 0°–90°, Tee 90°, Cross, Wye 45°/60°
- Applicable materials: HDPE, PP, PVDF
- Control system: Manual hydraulic
- Power supply: 380 V AC, 50/60 Hz
- Heating plate power: 9.0 kW
- Trimmer power: 2.2 kW
- Hydraulic power: 0.75 kW
- Total power consumption: 11.95–12.3 kW (depending on configuration)
- Maximum working pressure: 80 Bar
- Cylinder cross-sectional area: 10.9 cm3
- Warranty: 2-year quality warranty (as stated on product page)
