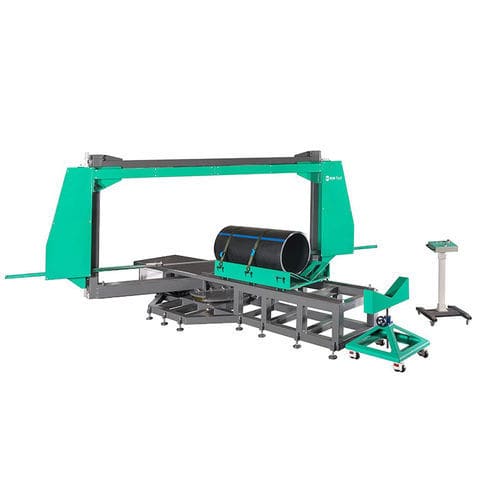

Band saw SWT-C1000

for metalsfor tubeshydraulic

Overview

Multi‑angular industrial pipe band saw available in SWT‑C1000 and SWT‑C1200 variants. Designed for precise, repeatable angle cutting of large‑diameter thermoplastic pipes (HDPE, PP, PVDF, PPR, PVC). The machine uses electric‑cylinder actuation for consistent saw carriage movement and eliminates hydraulic oil from the drive system.

Product highlights

• Electric‑cylinder drive: smooth, rapid and repeatable carriage travel for consistent cuts and reduced operational noise.
• No hydraulic oil: removes risks of oil leaks and lowers maintenance and cleaning requirements.
• Wide angular capacity: cutting angles up to +67.5° / -67.5° to produce multi‑angle fittings such as WYE connectors without repositioning the pipe.
• Adjustable feeding and line speed up to 255 m/min to match material and wall thickness.
• Laser cut detection and emergency stop for process control and safety.

Standard composition

• Pipe supporting bed
• Straps to clamp main pipes
• Control panel with emergency stop
• Laser cut detection
• Special saw blade option for thick‑walled pipes
• Pipe support elements

Applications

• Angle cutting of pipes for fittings and assemblies (including WYE connectors)
• HDPE boat component fabrication and other industrial pipe‑cutting tasks requiring precise angular cuts
• Manufacturers, distributors and workshops for plumbing, gas and water supply systems

Technical specifications

• Models: SWT‑C1000 (OD 315 mm – 1000 mm) / SWT‑C1200 (OD 315 mm – 1200 mm)
• Power supply: 380 V, 3 P, 50/60 Hz
• Rated power: 3.7 kW
• Line speed: 0 – 255 m/min
• Footprint: 450 cm × 500 cm
• Max. cutting angle: ±67.5°
• Cutting angle error: ≤ 1°
• Feeding speed: adjustable
• Materials: HDPE, PP, PVDF, PPR, PVC
• Net weight: 1600 kg
