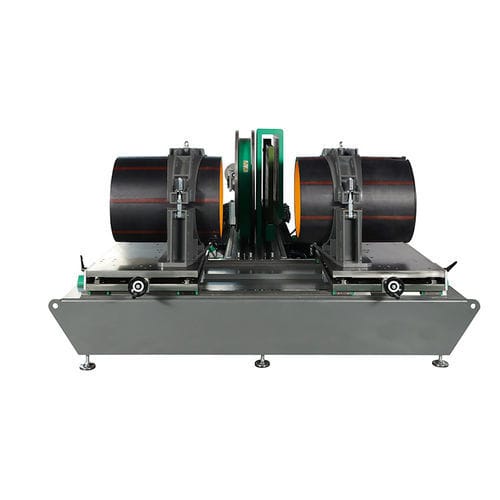

Butt welding machine SWT-MA500

automaticfor thermoplastics380V three-phase

Overview

The SWT-MA500CNC from MM-Tech is a CNC-controlled welding machine for in-factory fabrication of thermoplastic fittings in HDPE, PP and PVDF. It is designed for medium-diameter fittings production (elbows, tees, crosses) with automated hydraulic and CNC control to deliver repeatable precision for pipeline engineering and manufacturers.

Key features

• Hydraulic system with two work tables for smooth, stable operation.
• Automatic CNC-controlled welding: enter SDR, pipe diameter and standard, then run the welding program automatically.
• Control panel with color display, internal memory and USB port for data storage, transfer and software updates.
• Teflon-coated hydraulic heating plate for reliable heating and non-stick performance.
• Hydraulically driven milling cutter with motor drive for controlled face preparation.
• Complete set of fitting inserts and steel clamps for elbows, tees and crosses.
• Safety protections and oil-cylinder actuation suitable for industrial production.
• 2-year quality warranty and technical support.

Applications

• Fabrication of elbows (0-90°), tees, crosses and other thermoplastic fittings.
• Suitable for pipeline engineering companies, fitting manufacturers and suppliers requiring high-precision fabrication.

Notes from page content

• The page includes two size-range mentions: a descriptive paragraph states pipe sizes 315 mm to 630 mm while the technical table and title indicate 200 mm-500 mm. Refer to the specifications table for the formal values.

Technical specifications

• Model: SWT-MA500CNC
• Operation: CNC (automatic)
• Welding range: 200 mm - 500 mm
• Fittings: elbow 0-90°, tee, cross
• Power supply: 380 V AC, 50/60 Hz
• Total power: 26 kW
• Pressure range: 0 - 160 bar
• Materials compatible: HDPE, PP, PVDF
• Data & connectivity: USB for data export and software upgrade
• Warranty: 2-year quality warranty
