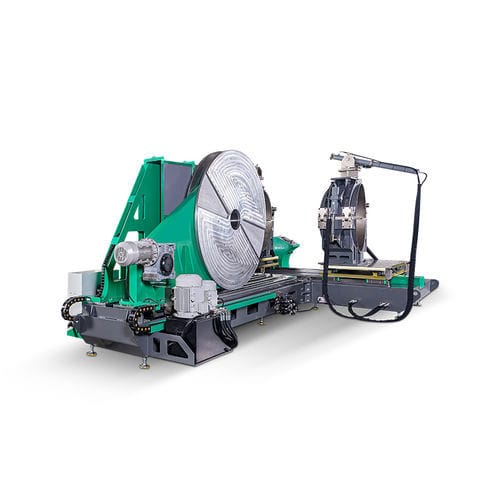

Butt welding machine SWT-MA800

automaticfor plastic pipefor thermoplastics

The SWT-MA800CNC is an automatic CNC welding machine for fabrication of HDPE/PP/PVDF pipe fittings, suitable for fittings with diameters from 500–800 mm (20"-32" IPS). It integrates CNC automation, a dual-hydraulic actuation system and IoT-enabled control for precise, traceable and efficient production.

Key features

• Dual-hydraulic system for stable, repeatable pressure control during welding cycles
• Automatic CNC butt-welding process for unattended operation and increased throughput
• Intelligent CNC control panel allowing setting of SDR, pipe diameter and welding parameters
• IoT module for remote diagnostics, firmware updates and real-time technical support
• On-board memory logging of welding cycles with USB port for data export and software updates
• Servo-driven heater and trimmer for precise, quiet and fast operation
• Patented insertable heating element design to reduce maintenance costs (replaceable subcomponents)
• High-strength trimmer plate with dual-sided blades for clean facing
• Heavy-duty powder-coated frame for corrosion resistance
• Major components supplied by recognized brands (Siemens, Wika, Schneider, Dupont)
• 2-year manufacturer warranty

Applications

• Production of HDPE/PP/PVDF fittings: elbows, tees, crosses and wyes for pipeline engineering, manufacturers and suppliers

Technical specifications

• Model / designation: SWT-MA800CNC — Operation: CNC (automatic)
• Welding range: 500 mm - 800 mm (20"-32" IPS)
• Fabricated fittings: 0°–90° (elbow, tee, cross); 45°/60° (wye)
• Power supply: 380 V AC, 50/60 Hz
• Total power: 54.5 kW
• Pressure range: 0 - 160 bar
• Interfaces: USB export, IoT connectivity
