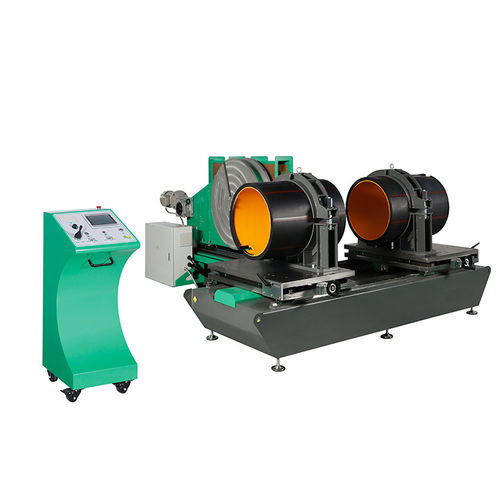

Butt welding machine SWT-MA450automaticCNChydraulic
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- automatic
- Other characteristics
- high-precision, CNC, electric, hydraulic
- Power
26,000 W, 30,000 W, 54,500 W, 71,000 W
Description
Product overview
Key features
Standard composition
Applications
Technical specifications
- Stationary CNC welding machine for factory fabrication of HDPE pipe fittings (elbows, tees, crosses, wyes). Designed for automated, repeatable production with hydraulic drives and process traceability.
Key features
- Double hydraulic design for smooth, stable movement and consistent clamping.
- CNC/automatic welding sequence with color operator panel for parameter entry and monitoring (SDR, diameter, standards).
- USB interface and built-in memory for saving welding records and software upgrades; optional automatic report printing.
- Hydraulic oil cylinders for main machine motions and tooling actuation.
- Teflon-coated heating plate with hydraulic positioning for reliable heating and non-stick operation.
- Hydraulically driven milling cutter for controlled seat preparation and chamfering.
- Standard set of aluminum inserts and steel clamps to produce elbows, tees, crosses and other fittings.
Standard composition
- Machine body with two hydraulically powered working tables to support stable processing.
- Automatic CNC control panel with memory, USB port and automatic operation functions.
- Hydraulically moved milling unit driven by electric motor for precise machining.
- Hydraulically moved Teflon-coated heating plate for non-stick heating cycles.
- Complete fitting tooling kit: aluminum inserts, steel clamps and mounting elements for multiple fitting types.
Applications
- Industrial production of HDPE pipe fittings for pipeline engineering, water and wastewater networks, and prefabrication workshops.
- Manufacturers and factories needing traceable, high-precision welding of fittings and components, including boat and special-purpose pipe assemblies.
Technical specifications
- Model example: SWT-MA630CNC (series: SWT-MA450 / SWT-MA500 / SWT-MA630 / SWT-MA800 / SWT-MA1000 / SWT-MA1200 / SWT-MA1600).
- Operation: CNC (automatic).
- Welding range (examples): SWT-MA450: 200–450 mm; SWT-MA500: 200–500 mm; SWT-MA630: 315–630 mm; SWT-MA800: 500–800 mm; SWT-MA1000: 630–1000 mm; SWT-MA1200: 630–1200 mm; SWT-MA1600: 1000–1600 mm.
- Power supply: 380 V AC, 50/60 Hz.
- Total power (by model): 26 kW / 26 kW / 30 kW / 54.5 kW / 71 kW / 71 kW / 71 kW (respectively).
- Hydraulic pressure range: 0–160 bar.
- Data & traceability: USB port, built-in memory for welding records, optional automatic printing and software updates.
- Warranty: 2-year quality warranty (as provided).
