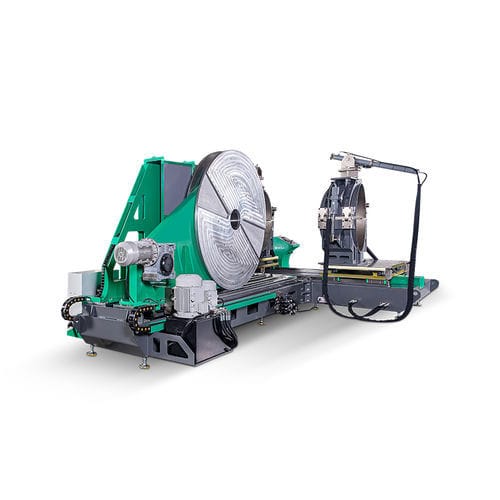

Butt welding machine SWT-MA2000

automaticCNChydraulic

Overview
The SWT-MA2000CNC is an automatic CNC welding machine for factory production of HDPE/PP/PVDF pipe fittings. It combines hydraulic actuation, CNC control and data traceability to support serial fabrication of elbows, tees, crosses and Y-pieces in the 1200–2000 mm diameter range.

Key features

• Hydraulic system with controlled pressing force and safety protections
• Automatic CNC-controlled welding cycles with color operator panel
• USB interface and built-in memory for welding cycle logging and export
• IoT module for remote diagnostics, software updates and technical support
• Servo-driven heater and trimmer for precise, fast and low-noise operation
• Patented insert-type heating element for simplified maintenance
• High-strength dual-sided trimmer plate for clean facing
• Heavy-duty powder-coated frame and industrial-grade components (Siemens, Wika, Schneider, DuPont)
• 2-year warranty

Options / additional attributes

• Hydraulic package
• Automatic welding process (CNC)
• USB data export
• Oil cylinder
• Safety protection devices
• IoT connectivity (optional)

Applications

• Mass production of HDPE pipe fittings in factories
• Pipeline engineering and prefabrication workshops
• Manufacturers of large-diameter piping systems
• HDPE vessel and boat component fabrication

Technical specifications

• Model: SWT-MA2000CNC
• Operation: CNC (automatic)
• Welding range (diameter): 1200 mm – 2000 mm
• Fittings produced: 0°–90° (elbow, tee, cross); 45°/60° (Y)
• Power supply: 380 V AC, 50/60 Hz
• Total power: 260 kW
• Working pressure range: 0 – 160 bar
• Data logging: built-in memory, USB export
