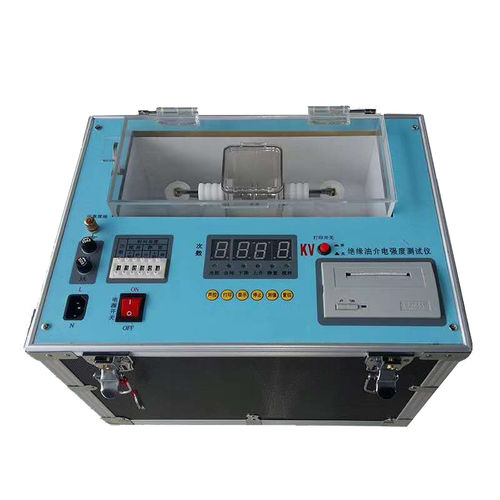

Insulation oil tester HZ182N

dielectricelectrical insulationfor transformers

Transformer Oil BDV (Breakdown Voltage) Testers are widely used in high-voltage electrical equipment such as transformers, oil circuit breakers, oil-filled cables, power capacitors, and oil bushings. During operation, the performance of the oil will gradually deteriorate due to the effects of oxygen, high temperature, high humidity, sunlight, strong electric fields, and impurities, so that it cannot fully function as an insulator. To identify whether its performance has deteriorated, the quality of insulation oil is closely related to the breakdown voltage. The HZ182N Transformer Oil BDV Tester is one of the routine tests for oil-soaked high-voltage electrical equipment. It assesses the electrical performance of the oil. According to the "Electricity Coefficient Oil Test Method" revised by the Ministry of Electricity, the GB/T 507-2002 standard for insulation oil breakdown voltage is followed. This measurement method has been developed by the insulating oil agency strength tester. This product features a lightweight, dry aluminum alloy shell, making it easy to carry. It is suitable for power coefficients and on-site users. Compared with similar products, this tester is simple and easy to operate. Its high efficiency and accurate measurements make it an ideal instrument for testing staff. Technical Performance 1. Power voltage: AC220V ± 10%, 50Hz ± 5% 2. Equipment capacity: 0.5kva, the volume volume 1.5 kVA 3. Limited current: 5mA 4. Input voltage: 200V/50Hz 5. Output test voltage: 0-80kV 6. Measurement range: AC 0-80KV 7. Voltage indicator error: ± 5% 8. Breathing speed: 2KV/second ± 20% 9. Compression speed: 2KV/s ± 10% 10. State settings: Number of times 1-9
