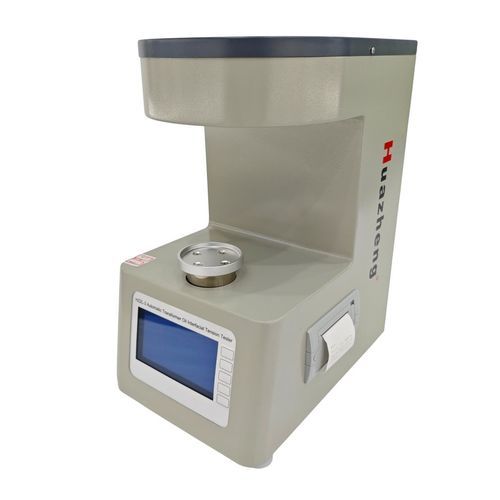

Oil-water interfacial tension tensiometer HZZL-3

portableautomatic

• Measuring range 0–200 mN/m • Accuracy 0.1% ±0.1 mN/m • Resolution 0.1 mN/m • Sensitivity 0.1 mN/m • Data storage 255 groups with timestamps • Power supply AC220V ±20% 50Hz ±10% 20W • Dimensions 200×300×330 mm, weight 6 kg The Huazheng HZZL-3 is an advanced automatic oil interfacial tension tester designed to evaluate the physical and chemical properties of insulating oils and other liquids. Surface tension is one of the most important indicators of oil quality, reflecting contamination, degradation, and stability. Using an electromagnetic force-balance transducer, the HZZL-3 ensures highly accurate and repeatable measurements. With a user-friendly design, historical data storage, and convenient calibration process, it provides laboratories and field engineers with a precise and easy-to-use testing solution. The HZZL-3 supports both online and offline printing, enabling fast report generation. Test data can be stored internally or exported to a computer for further processing and analysis. Compact in design yet robust in performance, it operates reliably in laboratory conditions with stable power consumption. The HZZL-3 is widely used in power utilities, transformer maintenance, petrochemical industries, and research institutions, where monitoring oil quality and surface tension is critical to ensuring safe and efficient operation of electrical equipment.
