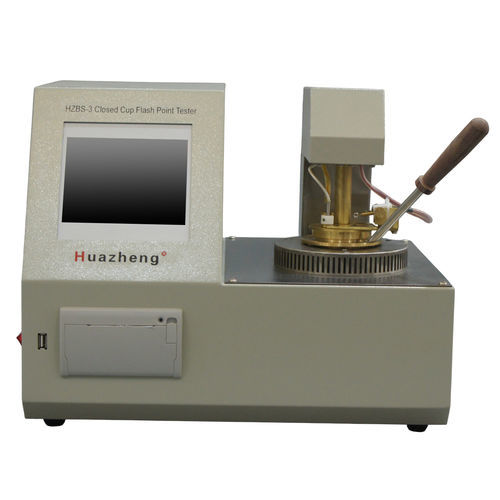

Flash point tester HZBS-3

for coatingfor fuelfor petroleum products

The Huazheng HZBS-3 Closed Cup Flash Point Tester applies digital signal processing to deliver accurate and automated testing. Its 640×480 color touchscreen replaces traditional keyboards for a clear, intuitive interface. The tester completes heating, lid operation, ignition, flash detection, cooling, and printing automatically, ensuring standardized and repeatable results. Integrated atmospheric pressure measurement with automatic correction improves accuracy, while support for ISO2719 and other standards expands applicability.

The HZBS-3 emphasizes safety and convenience, featuring over-temperature alarms and automatic shutdown for protection. A thermal-sensitive micro-printer delivers clear reports with offline printing capability. Its modular design and compact structure allow easy maintenance and portability. As a dependable substitute for imported testers, it is widely applied in petroleum, electric power, aviation, railway, and research institutions. With intelligent control, precise measurement, and user-friendly design, the HZBS-3 ensures efficient and reliable flash point testing in both lab and field environments.

• Temperature measuring range: -49.9°C to 400°C
• Temperature control range: room temp to 250°C
• Resolution: 0.1°C, precision ±0.5%
• Repeatability: 0.029X (x = average of two successive tests)
• Heating power: ≤500W, power supply AC230V
• Overall dimension: 390 × 300 × 302mm
• Instrument weight: 15kg
