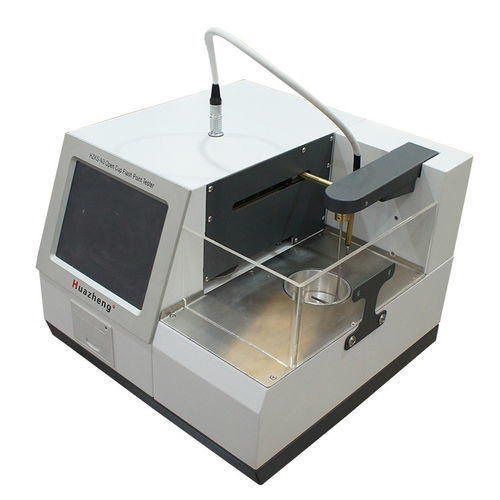

Temperature tester HZKS-N3flash pointoilfor transformers
Add to favorites
Compare this product
Characteristics
- Test type
- temperature, flash point
- Tested product
- for transformers, oil, for petroleum products
- Applications
- laboratory
- Configuration
- benchtop
- Other characteristics
- automatic, with touchscreen, with memory, non-contact, with internal data base, with data acquisition system, motorized, with heater
Description
Overview
Key features
Technical specifications
Structure and components
Applicable standards
Installation and operation notes
- Automatic Cleveland open cup flash point tester HZKS-N3 Huazheng for flash point measurement of petroleum products, chemicals and transformer oils. Supports Cleveland Open Cup method (ASTM D92) and related standards.
Key features
- 8-inch true-color touchscreen (800×600) for test setup and results.
- PID closed-loop temperature control for accurate ramp control.
- PT100 L-type armored temperature probe for sample measurement.
- Electronic ignition with adjustable ignition ball (diameter 3–4 mm).
- UV optical flame/flash sensor for non-contact detection.
- Embedded micro thermal printer for on-site result output.
- Stepper-motor-driven lifting and fire-sweeping mechanisms for automated operation.
- Automatic fire-extinguishing cover and safety seat for sample protection.
- Strong air cooling to accelerate furnace cooldown; polymethylacrylic wind protection cover.
- Data storage: up to 100 test records; RS-232 communication port.
Technical specifications
- Working power supply: AC 220V ±10%, 50Hz.
- Heating power (standby): 600 W; two 300 W heating rods, stepless adjustable 0–600 W; overall maximum power 750 W.
- Operating ambient temperature: 5–40 °C.
- Temperature range: room temperature to approximately 400 °C; resolution 0.1 °C; repeatability ≤ 4 °C.
- Overall dimensions: 380 × 360 × 360 mm.
- Data memory: up to 100 groups of experimental data.
Structure and components
- 8-inch color LCD touchscreen.
- Lifting mechanism driven by stepper motor (automatic control).
- Fire-sweeping mechanism driven by stepper motor.
- L-type armored PT100 temperature probe.
- Platinum ignition wire / electronic ignition assembly and adjustable ignition ball.
- Open test cup and fire-extinguishing cover.
- Embedded micro thermal printer and rear RS-232 port.
- Cooling fan outlets and electric furnace fan interfaces; electronic barometer integrated.
Applicable standards
- Designed for ASTM D92 Cleveland Open Cup and references to ASTM D93 / ISO 2719 where applicable; mentions of GB/T 3536-2008, GB/T 267-88 for national compliance.
Installation and operation notes
- Install in a well-ventilated laboratory or use a fume hood to remove gases produced during testing.
- Power supply: AC 220V ±10%, 50Hz. Ensure proper grounding and compliance with local electrical requirements.
- When adjusting probe height, loosen securing nut, position probe accurately and retighten.
- Follow safety procedures for handling flammable samples and maintain regular calibration and maintenance.
