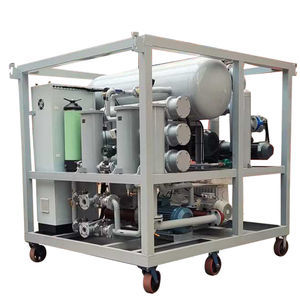

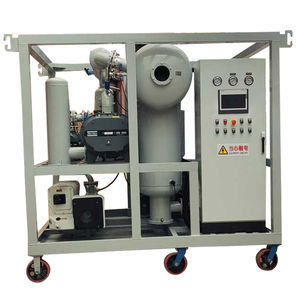

Oil purification system HZLY-50A

for industrial applications

The transformer oil filter is a mechanical device specifically designed for filtering and purifying transformer oil. Its core function is to remove solid impurities, water, and gases from the oil, thereby improving the oil's quality and enhancing the insulation strength of the transformer oil. The transformer oil filter is widely used in power systems, petrochemicals, metallurgy, railways, and other industrial and mining enterprises. It is used for purifying substandard electrical insulating oil and can also be used for vacuum oil filling and drying of insulating electrical equipment. Product Specifications Oil Purification Capacity - 50 L/min Ultimate Vacuum Degree - ≤5 Pa Pumping Rate - 250 m³/h Filtration Accuracy - 1 μm Power Supply - 50Hz 380V Three-phase Three-wire Heating Power - 30 KW Total Power - 36 KW Operating Noise - ≤75 dB(A) Oil Inlet and Outlet Port - DN25 Vacuum Interface Flange - DN25 Dimensions - 145×140×165 cm Equipment Weight - 760 Kg Continuous Working Time - ≥200 h Average Working Hours Without Failure - ≥5000 h Product Net Oil Index Oil to be treated (new oil) Breakdown Voltage: >30kV (ball electrode)； Moisture Content: ≤50ppm； Gas Content: ≤10% (Volume ratio)； After multiple processes Breakdown Voltage: >80kV (ball electrode)； Moisture Content: ≤2ppm； Gas Content: ≤0.1% (Volume ratio)；
