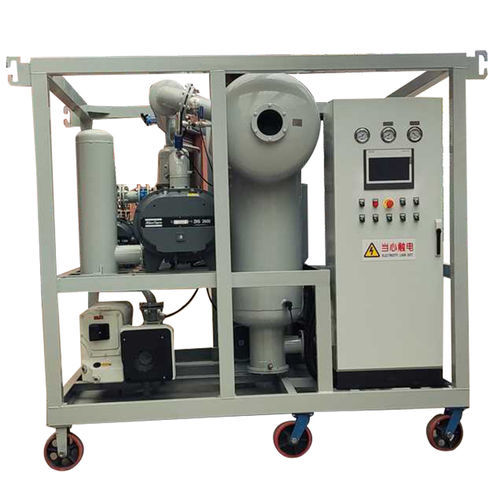

Oil purification system HZLY-150Acost-effectivefor industrial applicationsfor vacuum pumps
Add to favorites
Compare this product
Characteristics
- Treated material
- for oil
- Options
- cost-effective
- Application
- for industrial applications, for vacuum pumps
Description
Overview
- The Huazheng HZLY series vacuum oil dehydration and purification plant is a transformer oil purifier designed to remove free and dissolved water, dissolved gases and solid contaminants to restore dielectric strength and extend oil service life.
- Removal of free and dissolved water, gases and mechanical/solid impurities from insulating oils.
- Degassing and de-foaming to stabilize oil dielectric properties.
- Fine particle filtration to protect transformer windings and components.
- Applicable to 500 kV super-voltage equipment, 220 kV transformers, capacitor oil and other industrial dielectric oils.
- Huazheng horizontal double vacuum separation increases evaporation area for efficient dehydration and degassing.
- Coalescing oil-spray separator for effective gas removal.
- Fine filtration with American filter elements, fineness 5 μm (filtration index reported β ≥ 1000).
- Thermal-radiation heating with constant temperature control for stable processing.
- Low-noise, long-life oil transport system and float valve plus photoelectric oil level control to reduce manual supervision.
- French de-foaming technique to prevent oil leakage during processing.
- PLC-based digital automatic control and imported main electrical components for reliable operation.
- Compact layout for integration into existing maintenance workflows and minimized footprint.
- User-oriented interface and accessible components to simplify operation and routine maintenance.
- Each unit is tested and quality-checked to meet relevant industry standards.
- Model / series: HZLY series (Huazheng)
- Primary functions: dehydration (free & dissolved water removal), degassing, fine particle filtration
- Filter element fineness: 5 μm (β ≥ 1000)
- Heating: thermal-radiation heating with constant temperature control
- Vacuum technology: horizontal double vacuum separation
- Degassing: coalescing oil-spray separator
- Level control: float valve photoelectric sensor
- Defoaming: French de-foaming technique
- Control system: PLC-based digital automatic control
- Typical applications: 220 kV transformers, 500 kV super-voltage equipment, capacitor oil, freezer oil
