Liquid density meter ASTM D1298

digital

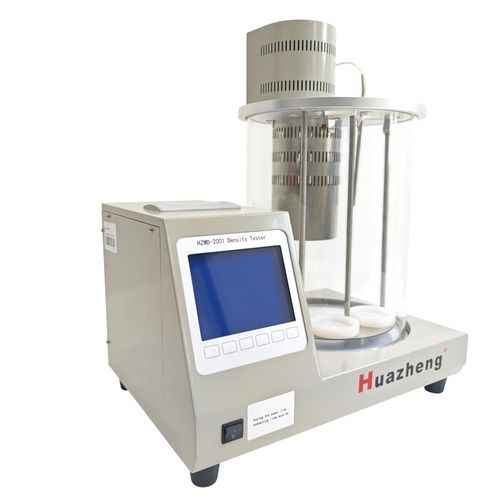

Density refers to the mass of the substance contained in the unit volume at the specified temperature. The density of petroleum products increases with the increase of carbon, oxygen, and sulfur in its composition, thus containing more arenes, colloids, and asphaltenes, which have high density. The SCMD2001 petroleum products density tester follows national standards GB / T1884-92 and is mainly used for the density determination of transparent, low viscosity liquid and viscous liquid, with high temperature control precision, reliable stability, and easy operation. Operation of Appliance: - Open the packing box and check if the instrument is intact and if spare parts are complete, and then place the instrument in a well-ventilated position without direct sunlight. - Wash the tub and add pure water or salt water into the bathtub to fifteen centimeters from the cover. - Connect the power supply, turn on the power, enter the boot screen, if temperature needs to be adjusted, press “Parameter” to enter the parameter setting menu and adjust, press “Enter” after modification. Then switch to the testing screen; keep constant temperature for a certain period of time according to the requirement of standard after the set temperature is reached and conduct the test. - When measuring the density with petroleum densitometer, it is most accurate at the standard temperature of 20°C or close to this temperature. Main Technical Parameters: - Range of temperature measurement: room temperature ~100°C - Temperature Control Precision: ≤±0.1°C - Number of experimental cups: two holes - Power: ≤1000W - Supply Voltage: AC220V±20% 50HZ ±10% - Ambient Temperature: 0°C~40°C - Relative humidity: 100VAC - Weight: ≤ 12kg - Dimensions: L478mm × W360mm × H316mm Packing list: 1. High voltage bridge locator 2. Rods 3. Special grounding wire 4. Power cord 5. Special short wiring (for 35kV and below) 6. Spare 9V battery 7. Spare fuse 2A Brand: Huazheng Model: ASTM D1298 Automatic Liquid Densitometer Application: Density measurement of transformer oil and other petroleum products Standard compliance: GB / T1884-92
