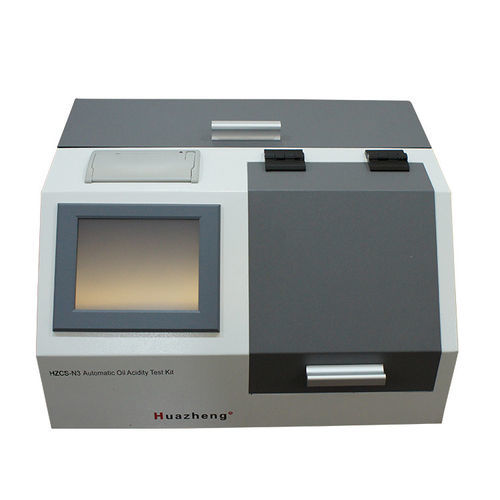

Safety tester HZCS-N3

acidityinsulation oilfor transformers

Overview
HZCS-N3 transformer oil acid tester is a fully automatic measuring instrument which adopts the extraction method to accurately detect the insulating oil acid value. This instrument improves working efficiency and test accuracy while reducing operator contact with samples and reagents, enhancing safety.

Operation summary
The instrument automatically searches samples, injects the extraction, performs blank titration, runs the experiment, performs cleaning, displays and prints results. The operator only needs to put sample cups in the sample cup holes and inject the extraction into the cup. Once started, 1 to 3 samples can be measured, enabling convenient and efficient testing.

Features

• Fully automatic extraction-based measurement of insulating oil acidity.
• Automatic sample search and reagent injection.
• Automatic blank titration, test execution, cleaning and result printing.
• Measures 1 to 3 samples per run for high efficiency.
• Design reduces operator contact with samples and reagents for improved safety.
• Calibration capability using prepared standard acid and neutralizing liquid to maintain accuracy over time.

Overview and Technical Index

• Test range: 0.002 ~ 1 mg KOH/g
• Test error: ≤ ±0.005 mg KOH/g
• Repeatability: ≤ 0.005 mg KOH/g
• Ambient temperature: 10°C ~ 45°C
• Relative humidity (RH): ≤ 85% RH
• Voltage supply: AC 220V/50Hz
• Power: 50W

Packing list (table)
No. | Item | Qty
1 | Main engine | 1
2 | Neutralization liquid medicine | 2
3 | Extracted liquid medicine | 2
4 | Gas washing bottle medicine | 1
5 | Indicator | 1
6 | Standard acid | 1
7 | Microsyringe | 1
8 | Sample cup | 3
9 | Stirrer | 3
10 | Glass bottle | 3
11 | Glass bottle cap | 3
12 | Tubing for peristaltic pumps | 1
13 | Print paper | 2
14 | Power line | 1

Notes
The instrument must be adequately grounded. The calibration procedure and prepared standard acid allow users to calibrate the instrument and neutralizing liquid as needed; the instrument also automatically deducts background extract values during tests to improve accuracy and reliability.

Characteristics / technical specifications

• Model: HZCS-N3
• Measurement method: Extraction titration (fully automatic)
• Testable sample count per run: 1–3 samples
• Measurement range: 0.002–1 mg KOH/g
• Accuracy / Test error: ≤ ±0.005 mg KOH/g
• Repeatability: ≤ 0.005 mg KOH/g
• Operating temperature: 10°C–45°C
• Relative humidity: ≤85% RH
• Power supply: AC 220V, 50Hz
• Power consumption: 50 W
• Automatic functions: sample search, reagent injection, blank titration, test execution, cleaning, result display/print
• Calibration: supports instrument calibration with standard acid and neutralizing liquid
