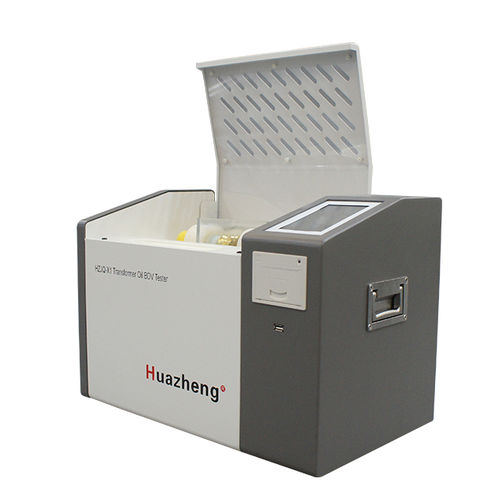

Dielectric tester HZJQ-X1

oilindustrialportable

• Output Voltage: 0–80 kV (optional) • Voltage Distortion: <3% • Booster Capacity: 1.5 kVA • Measuring Accuracy: ±3% • Power Supply: AC 230V, 50/60 Hz • Power Consumption: 200 W • Operating Temperature: 0–45℃ • Operating Humidity: <75% RH • Dimensions: 460×280×320 mm The HZJQ-X1 Transformer Oil BDV Tester is designed for testing the breakdown voltage of insulating oil, widely used in power systems, railways, petrochemical plants, and other industries. Built according to GB/T507-2002, DL429.9-91, and DL/T846.7-2004 standards, it adopts a microprocessor for full automation, ensuring high accuracy, improved efficiency, and reduced labor. The system features a color LCD touch screen with Chinese/English menus, compact design, and simple operation. It automatically performs boosting, holding, mixing, and recording. Test results (1–10 times) are stored and can be printed with average values. Data storage for 100 results, RS232/USB communication, and protections against over-voltage and over-current ensure safety and reliability.
