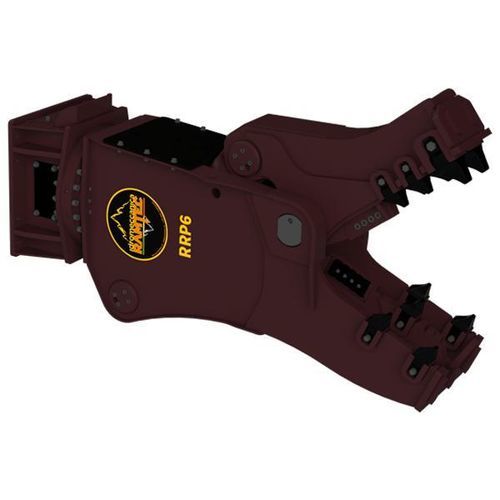

Primary demolition hydraulic crusher RRP6

for secondary demolitionfor concretefor excavators

Description
The RRP rotating pulverizer is particularly suitable for carrying out primary and secondary demolition activities, such as the demolition of reinforced concrete structures and the subsequent crushing of residual material, the reduction of blocks and their handling, as well as for separating concrete from reinforced rods, to facilitate their recycling.

Mounting

• Mini Excavator: 7-10 t
• Excavator: 10-12 t

USA SPECS

• Excavator weight: 15400 – 26500 lbs
• Equipment weight: 1455 lbs
• A Opening: 20 inches
• B Length: 63 inches
• C Width: 13.4 inches
• Maximum oil pressure: 3625 psi
• Required oil flow: 21 – 26 gal/min
• Rotation oil pressure: 870 psi
• Rotation oil flow: 5 gal/min

METRIC SYSTEM

• Excavator weight: 7 – 12 ton
• Equipment weight: 660 kg
• A Opening: 520 mm
• B Length: 1600 mm
• C Width: 340 mm
• Maximum oil pressure: 250 bar
• Required oil flow: 80 – 100 L/min
• Rotation oil pressure: 60 bar
• Rotation oil flow: 20 L/min

Technical specifications

• Excavator weight: 7–12 t (15,400–26,500 lbs)
• Equipment weight: 660 kg (1,455 lbs)
• A Opening: 520 mm (20 in)
• B Length: 1600 mm (63 in)
• C Width: 340 mm (13.4 in)
• Maximum oil pressure: 250 bar (3,625 psi)
• Required oil flow: 80–100 L/min (21–26 gal/min)
• Rotation oil pressure: 60 bar (870 psi)
• Rotation oil flow: 20 L/min (5 gal/min)
