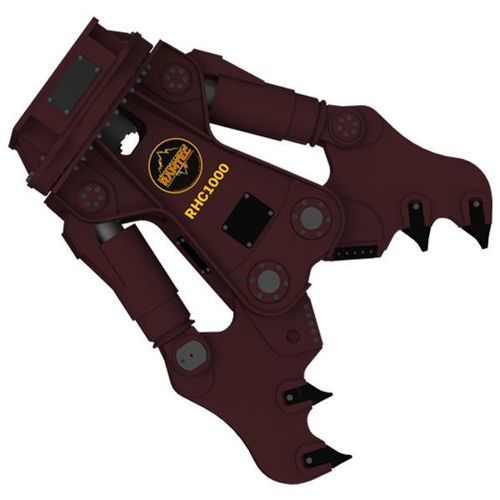

Building hydraulic crusher RHC1000

for concretefor primary demolitionfor excavators

Description
The RHC1000 demolition crusher is designed for primary demolition tasks on reinforced concrete and structural elements. It is intended for mounting on medium excavators and provides a 600 mm jaw opening suitable for processing concrete and masonry.

Mounting

• Compatible excavator class: 12–16 t

USA SPECS
Excavator weight: 26,500 – 35,000 lbs
Equipment weight: 2,535.3 lbs
A Opening: 23.6 in
B Length: 66.9 in
P Depth: 18 in
Maximum oil pressure: 4,496 psi
Required oil flow: 53 – 58 gal/min
Rotation oil pressure: 1,740 – 1,885 psi
Rotation oil flow: 5 – 8 gal/min

METRIC SYSTEM
Excavator weight: 12 – 16 ton
Equipment weight: 1,150 kg
A Opening: 600 mm
B Length: 1,700 mm
P Depth: 460 mm
Maximum oil pressure: 310 bar
Required oil flow: 110 – 150 L/min
Rotation oil pressure: 120 – 130 bar
Rotation oil flow: 20 – 30 L/min

Technical specifications

• Model: RHC1000
• Excavator weight range: 12 – 16 t (26,500 – 35,000 lbs)
• Equipment weight: 1,150 kg (2,535.3 lbs)
• A Opening: 600 mm (23.6 in)
• B Length: 1,700 mm (66.9 in)
• P Depth: 460 mm (18 in)
• Maximum oil pressure: 310 bar (4,496 psi)
• Required oil flow: 110 – 150 L/min (53 – 58 gal/min)
• Rotation oil pressure: 120 – 130 bar (1,740 – 1,885 psi)
• Rotation oil flow: 20 – 30 L/min (5 – 8 gal/min)
