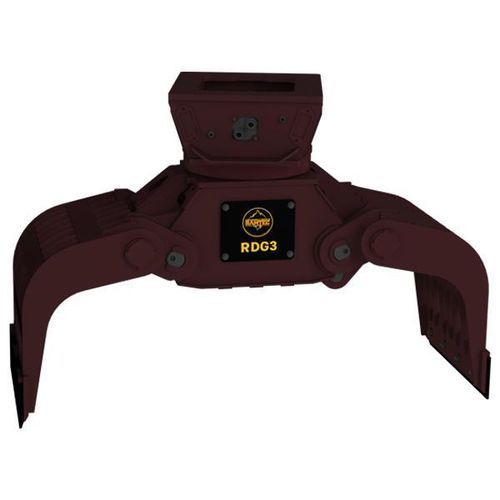

Hydraulic sorting grapple RDG3

construction sitefor the recycling industry

Overview
The RDG sorting grab RDG3 is a versatile demolition and selection attachment designed to handle, sort and facilitate recycling of residual demolition material. Available in models from 187 kg to 3500 kg, it mounts on mini to medium-large excavators and delivers precise handling through a continuous 360° rotation system. Constructed with anti-wear materials and featuring interchangeable blades, the RDG3 is updated for optimal performance and smooth operation in demanding sites.

Compatible carriers / Mounting examples

• Mini excavators and medium-large excavators: 1.8 t to 65 t
• Example shown: 2.5–4 t

USA SPECS
Excavator weight: 5510 – 8820 lbs
Equipment weight: 595 lbs
A Opening: 41 inches
B Height: 37 inches
C Width: 20 inches
Maximum oil pressure: 2610 psi
Required oil flow: 6 gal/min
Rotation oil pressure: 725 psi
Rotation oil flow: 4 gal/min

METRIC SYSTEM
Excavator weight: 2.5 – 4 ton
Equipment weight: 270 kg
A Opening: 1050 mm
B Height: 940 mm
C Width: 500 mm
Maximum oil pressure: 180 bar
Required oil flow: 25 L/min
Rotation oil pressure: 50 bar
Rotation oil flow: 15 L/min

Technical characteristics

• Model name: RDG3
• Type: Demolition / selection grab (sorting grab)
• Weight range (models available): 187 kg – 3500 kg
• Mounting: For mini excavators and medium-large excavators (approx. 1.8 t to 65 t)
• Example mounting range (illustrated): 2.5 – 4 t
• Rotation: 360° continuous rotation system
• Materials: Anti-wear materials and treatments; interchangeable blades
• USA spec — Excavator weight: 5510 – 8820 lbs; Equipment weight: 595 lbs; A Opening: 41 in; B Height: 37 in; C Width: 20 in; Max oil pressure: 2610 psi; Required oil flow: 6 gal/min; Rotation oil pressure: 725 psi; Rotation oil flow: 4 gal/min
• Metric spec — Excavator weight: 2.5 – 4 ton; Equipment weight: 270 kg; A Opening: 1050 mm; B Height: 940 mm; C Width: 500 mm; Max oil pressure: 180 bar; Required oil flow: 25 L/min; Rotation oil pressure: 50 bar; Rotation oil flow: 15 L/min
