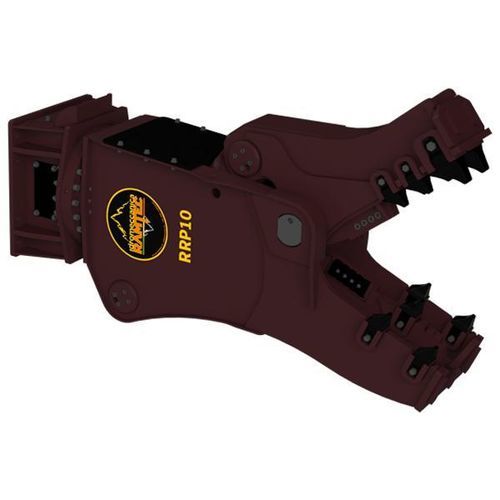

Primary demolition hydraulic crusher RRP10

for secondary demolitionfor concretefor excavators

Description
The RRP10 rotating pulverizer is engineered for primary and secondary demolition tasks: dismantling reinforced concrete structures, crushing residual material, reducing blocks and separating concrete from reinforcing bars to facilitate recycling. Its compact footprint and rotation function improve operator control and on-site material handling.

Mounting

• Mini excavator: 9–10 t (metric indication on site)
• Excavator: 10–15 t (metric indication on site)
• USA spec equivalent excavator weight: 19,900 – 33,000 lbs

USA SPECS
Excavator weight: 19,900 – 33,000 lbs
Equipment weight: 2,436 lbs
A Opening: 25 inches
B Length: 71.5 inches
C Width: 15.5 inches
Maximum oil pressure: 4,496 psi
Required oil flow: 26 – 39 gal/min
Rotation oil pressure: 1,740 – 1,885 psi
Rotation oil flow: 5 – 8 gal/min

METRIC SYSTEM
Excavator weight: 9 – 15 ton
Equipment weight: 1,105 kg
A Opening: 630 mm
B Length: 1,815 mm
C Width: 390 mm
Maximum oil pressure: 310 bar
Required oil flow: 100 – 150 L/min
Rotation oil pressure: 120 – 130 bar
Rotation oil flow: 20 – 30 L/min

Technical specifications

• Model: RRP10
• Application: primary and secondary demolition, concrete crushing, block reduction, separation of concrete from reinforcing rods for recycling
• Mounting carrier range: mini excavator and excavator classes (approx. 9–15 t)
• Equipment weight (metric): 1,105 kg
• A Opening: 630 mm (25 in)
• B Length: 1,815 mm (71.5 in)
• C Width: 390 mm (15.5 in)
• Maximum oil pressure: 310 bar (4,496 psi)
• Required oil flow: 100 – 150 L/min (26 – 39 gal/min)
• Rotation oil pressure: 120 – 130 bar (1,740 – 1,885 psi)
• Rotation oil flow: 20 – 30 L/min (5 – 8 gal/min)
