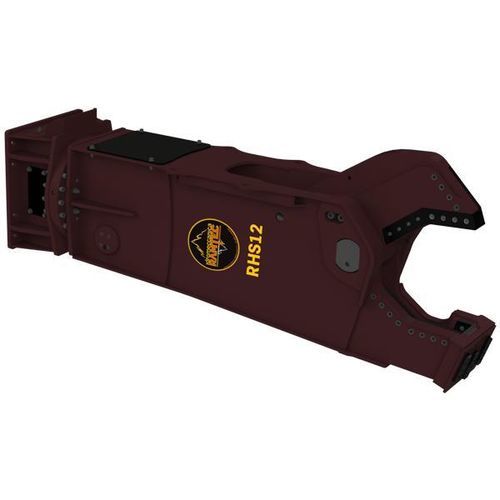

Hydraulic demolition shears RHS12

for excavatorsfor ferrous metalsfor metal

Description
The RHS12 shear is designed for cutting ferrous structures such as pipes, section bars and sheets of various shapes and sizes. It is suitable for primary and secondary demolition works and on-site structural dismantling.

You can mount it on

• Mini Excavator: 7–10 t
• Excavator: 10 t

USA SPECS
Excavator weight (arm position): 15400 – 22000 lbs
Excavator weight (bucket position): 26000 – 39800 lbs
Equipment weight: 2756 lbs
A Opening: 17 inches
B Length: 96 inches
C Depth: 16 inches
Maximum oil pressure: 4496 psi
Required oil flow: 31 – 42 gal/min
Rotation oil pressure: 1740 – 1885 psi
Rotation oil flow: 5 – 8 gal/min

METRIC SYSTEM
Excavator weight (arm position): 7 – 10 ton
Excavator weight (bucket position): 12 – 19 ton
Equipment weight: 1250 kg
A Opening: 440 mm
B Length: 2450 mm
C Depth: 400 mm
Maximum oil pressure: 310 bar
Required oil flow: 120 – 160 L/min
Rotation oil pressure: 120 – 130 bar
Rotation oil flow: 20 – 30 L/min

Technical specifications

• Application: cutting ferrous structures (pipes, section bars, sheets) for primary and secondary demolition
• Model: RHS12
• Equipment weight: 2756 lbs / 1250 kg
• Opening (A): 17 in / 440 mm
• Length (B): 96 in / 2450 mm
• Depth (C): 16 in / 400 mm
• Maximum oil pressure: 4496 psi / 310 bar
• Required oil flow: 31–42 gal/min (120–160 L/min)
• Rotation oil pressure: 1740–1885 psi (120–130 bar)
• Rotation oil flow: 5–8 gal/min (20–30 L/min)
• Recommended carrier excavator weights: 7–10 t (arm position) and 12–19 t (bucket position)
