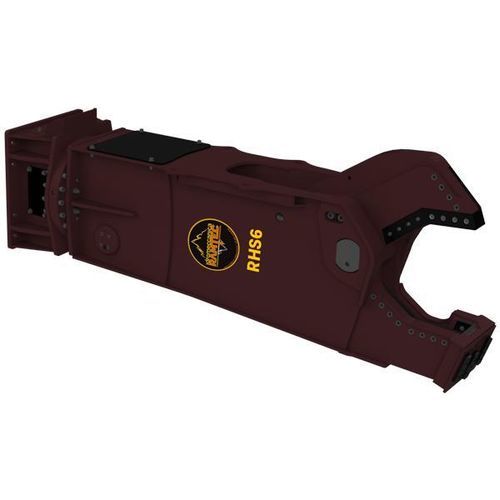

Metal hydraulic cutter RHS6

for pipesfor recyclingfor sheet metal

Description
The RHS6 hydraulic shear is designed to cut ferrous structures such as pipes, section bars and sheets of various shapes and thicknesses. It is intended for primary and secondary demolition, on-site dismantling and metal scrap processing where precision cutting and reliable cycle performance are required.

Applications

• Cutting ferrous structures (pipes, section bars, sheets)
• Primary and secondary demolition works
• On-site dismantling and scrap processing

Mounting
Suitable for mounting on mini excavators. Recommended carrier weight ranges and hydraulic requirements are indicated below; verify carrier configuration before installation.

USA SPECS
Excavator weight (arm position): 8,800 – 15,400 lbs
Excavator weight (bucket position): 15,400 – 26,000 lbs
Equipment weight: 1,411 lbs
A Opening: 14 in
B Length: 74 in
C Depth: 9 in
Maximum oil pressure: 3,626 psi
Required oil flow: 21 – 26 gal/min
Rotation oil pressure: 870 psi
Rotation oil flow: 5 gal/min

METRIC SYSTEM
Excavator weight (arm position): 4-7 t
Excavator weight (bucket position): 7-12 t
Equipment weight: 640 kg
A Opening: 365 mm
B Length: 1,880 mm
C Depth: 240 mm
Maximum oil pressure: 250 bar
Required oil flow: 80-100 L/min
Rotation oil pressure: 60 bar
Rotation oil flow: 20 L/min

Technical specifications

• Model: RHS6
• Type: Hydraulic shear for ferrous materials
• Recommended carrier: Mini excavator (4-7 t arm position; 7-12 t bucket position depending on configuration)
• Equipment weight: 640 kg (1,411 lbs)
• Jaw opening (A): 365 mm (14 in)
• Overall length (B): 1,880 mm (74 in)
• Depth (C): 240 mm (9 in)
• Maximum oil pressure: 250 bar (3,626 psi)
• Required oil flow: 80-100 L/min (21-26 gal/min)
• Rotation system: rotation oil pressure 60 bar (870 psi), rotation oil flow 20 L/min (5 gal/min)
