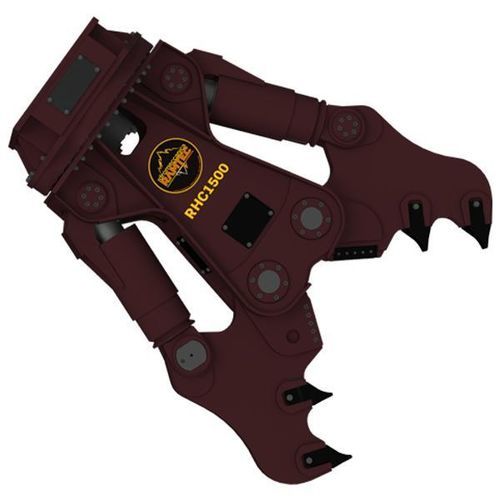

Primary demolition hydraulic crusher RHC1500

for concretefor excavators

Description
The RHC1500 hydraulic demolition crusher is designed for primary demolition tasks on construction and demolition sites, providing efficient reduction of concrete and masonry materials.

Mounting

• Carrier type: Excavator
• Recommended excavator weight: 16-22 t

USA SPECS
Excavator weight: 35000 – 48500 lbs
Equipment weight: 3086.5 lbs
A Opening: 27.9 inches
B Length: 79 inches
P Depth: 19 inches
Maximum oil pressure: 4931.3 psi
Required oil flow: 58 – 63 gal/min
Rotation oil pressure: 1740 – 1885 psi
Rotation oil flow: 5 – 8 gal/min

METRIC SYSTEM
Excavator weight: 16 – 22 ton
Equipment weight: 1400 kg
A Opening: 710 mm
B Length: 2010 mm
P Depth: 480 mm
Maximum oil pressure: 340 bar
Required oil flow: 150 – 180 L/min
Rotation oil pressure: 120 – 130 bar
Rotation oil flow: 20 – 30 L/min

Characteristics / Technical specifications

• Model: RHC1500
• Type: Hydraulic demolition crusher
• Designed for: Primary demolition activities
• Mounting: Excavator (recommended carrier weight 16–22 t)
• Equipment weight: 1400 kg (3086.5 lbs)
• A Opening: 710 mm (27.9 in)
• B Length: 2010 mm (79 in)
• P Depth: 480 mm (19 in)
• Maximum oil pressure: 340 bar (4931.3 psi)
• Required oil flow: 150–180 L/min (58–63 gal/min)
• Rotation oil pressure: 120–130 bar (1740–1885 psi)
• Rotation oil flow: 20–30 L/min (5–8 gal/min)
