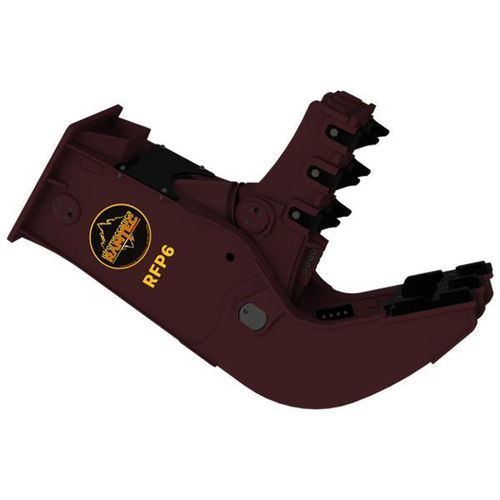

Secondary demolition hydraulic crusher RFP6

for concretefor excavators

Description The RFP fixed pulverizer is designed for secondary demolition tasks: reduction of demolition blocks and separation of concrete from reinforcing bars to simplify handling and recycling. Idromeccanica Ramtec's RFP models cover carriers from 6 t to 130 t, with equipment weights ranging from 500 kg to 10,400 kg. The hydraulic pulverizer is constructed in HARDOX high-wear steel and features interchangeable teeth and blades for fast on-site maintenance and extended service life.

Mounting

• Mini Excavator
• Recommended carrier class shown on page: 6-7 t

USA SPECS Excavator weight: 13,000 – 15,500 lbs
Equipment weight: 1,102 lbs
A Opening: 20 inches
B Length: 51 inches
C Width: 13 inches
Maximum oil pressure: 3,625 psi
Required oil flow: 21 – 26 gal/min

METRIC SYSTEM Excavator weight: 6 – 9 ton
Equipment weight: 500 kg
A Opening: 510 mm
B Length: 1,300 mm
C Width: 330 mm
Maximum oil pressure: 250 bar
Required oil flow: 80 – 100 L/min

Technical specifications

• Model family: RFP fixed pulverizer (RFP series)
• Material: HARDOX high-wear steel construction
• Interchangeable teeth and blades for maintenance and replacement
• Compatibility: suitable for carriers from 6 t up to 130 t (various RFP models cover weight classes from 500 kg to 10,400 kg)
• Example RFP6 (USA spec): equipment weight 1,102 lbs; A opening 20 in; B length 51 in; C width 13 in; max oil pressure 3,625 psi; required flow 21–26 gal/min
• Example RFP6 (metric): equipment weight 500 kg; A opening 510 mm; B length 1,300 mm; C width 330 mm; max oil pressure 250 bar; required flow 80–100 L/min
