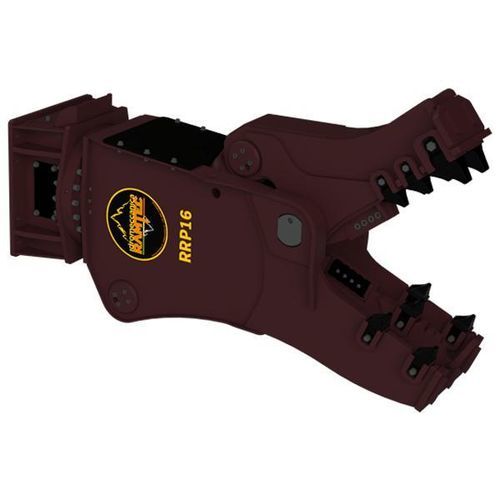

Secondary demolition hydraulic crusher RRP16

for concretefor primary demolitionfor excavators

Description
The RRP rotating pulverizer RRP16 is designed for primary and secondary demolition work on reinforced concrete structures. It performs concrete crushing, block reduction and handling, and separation of concrete from reinforcing bars to simplify recycling.

Mounting
Compatible with excavators of 15–20 t. Designed for front-mount installation on the carrier machine; hydraulic supply and rotation circuit required as specified below.

USA SPECS

• Excavator weight: 33,000 – 44,000 lbs
• Equipment weight: 3,769 lbs
• A (Opening): 31 inches
• B (Length): 83.5 inches
• C (Width): 19.7 inches
• Maximum oil pressure: 4,931 psi
• Required oil flow: 39 – 58 gal/min
• Rotation oil pressure: 1,740 – 1,885 psi
• Rotation oil flow: 5 – 8 gal/min

METRIC SYSTEM

• Excavator weight: 15 – 20 ton
• Equipment weight: 1,710 kg
• A (Opening): 790 mm
• B (Length): 2,120 mm
• C (Width): 500 mm
• Maximum oil pressure: 340 bar
• Required oil flow: 150 – 220 L/min
• Rotation oil pressure: 120 – 130 bar
• Rotation oil flow: 20 – 30 L/min

Additional information

• Primary uses: demolition of reinforced concrete, crushing of residual material, reduction and handling of blocks, separation of concrete from reinforcing rods to facilitate recycling.

Caractéristiques / spécifications techniques

• Model: RRP16
• Manufacturer / Brand: Idromeccanica Ramtec
• Recommended carrier: Excavators 15–20 t
• Equipment weight: 1,710 kg (3,769 lbs)
• Opening (A): 790 mm (31 in)
• Length (B): 2,120 mm (83.5 in)
• Width (C): 500 mm (19.7 in)
• Maximum oil pressure: 340 bar (4,931 psi)
• Required oil flow: 150–220 L/min (39–58 gal/min)
• Rotation oil pressure: 120–130 bar (1,740–1,885 psi)
• Rotation oil flow: 20–30 L/min (5–8 gal/min)
