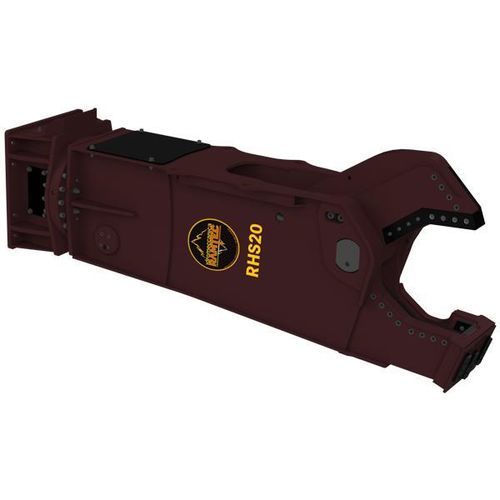

Hydraulic shear RHS20

for profilesfor metalsheet metal

Description
The RHS20 hydraulic shear is designed for cutting ferrous structures such as pipes, section bars and sheets of various shapes and sizes. It is suitable for primary and secondary demolition works and on-site metal processing where controlled cutting of structural elements is required.

Mounting recommendation

• Recommended carrier: excavators
• Recommended excavator operating weights (see specs below)

USA SPECS
Excavator weight (arm position): 25000 – 39600 lbs
Excavator weight (bucket position): 44000 – 61700 lbs
Equipment weight: 4475 lbs
A Opening: 21 inches
B Length: 110 inches
C Depth: 20 inches
Maximum oil pressure: 4931 psi
Required oil flow: 53 – 58 gal/min
Rotation oil pressure: 1740 – 1885 psi
Rotation oil flow: 5 – 8 gal/min

METRIC SYSTEM
Excavator weight (arm position): 14 – 18 ton
Excavator weight (bucket position): 20 – 28 ton
Equipment weight: 2030 kg
A Opening: 530 mm
B Length: 2785 mm
C Depth: 500 mm
Maximum oil pressure: 340 bar
Required oil flow: 200 – 220 L/min
Rotation oil pressure: 120 – 130 bar
Rotation oil flow: 20 – 30 L/min

Additional information

• Application: cutting ferrous structures (pipes, section bars, sheets) of different shapes and sizes
• Suitable for primary and secondary demolition works

Technical specifications

• Model: RHS20
• Product type: Hydraulic shear
• Manufacturer / Brand: Ramtec
• Mounting: Excavator (recommended carrier weight ranges provided in specs)
• Equipment weight: 2030 kg (4475 lbs)
• Opening (A): 530 mm (21 inches)
• Length (B): 2785 mm (110 inches)
• Depth (C): 500 mm (20 inches)
• Maximum oil pressure: 340 bar (4931 psi)
• Required oil flow: 200 – 220 L/min (53 – 58 gal/min)
• Rotation oil pressure: 120 – 130 bar (1740 – 1885 psi)
• Rotation oil flow: 20 – 30 L/min (5 – 8 gal/min)
• Excavator weight ranges (arm position): 14 – 18 ton (25000 – 39600 lbs)
• Excavator weight ranges (bucket position): 20 – 28 ton (44000 – 61700 lbs)
